ATSF 2926 restoration progress

Gunns Jul 26, 2005

  1. Gunns

    Gunns TrainBoard Member

    376
    7
    15
    I'll get some photos

    Life has been a Zoo. I went to the world Sicence Fiction convention and got committed to a pair of articles for a publisher, (looks like they come out next May, but it is not locked in stone) The Balloon Fiesta is coming up (I crew for a German team every year) And I feel like a one armed window washer with a broken belt.
    None the less I will get some Photos up on Thurs,
    Kevin

  2. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,734
    653
    Ha ha!!! Sounds like you don't have enough to do! Perhaps a few 25 hour days, and eight day weeks....???

    :D

    Boxcab E50

  3. Gunns

    Gunns TrainBoard Member

    376
    7
    15

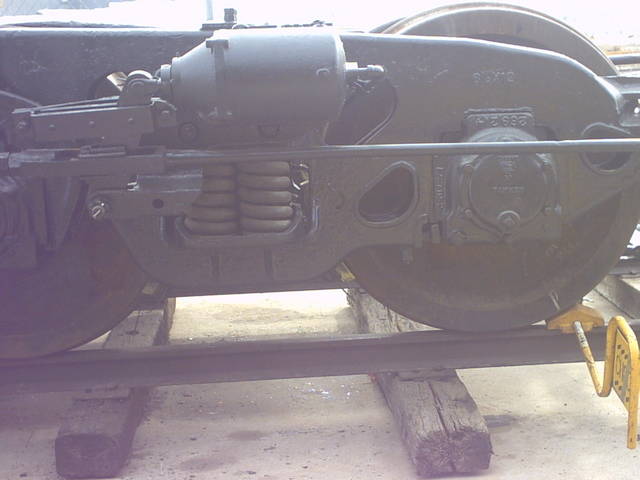

    Photos of the trucks

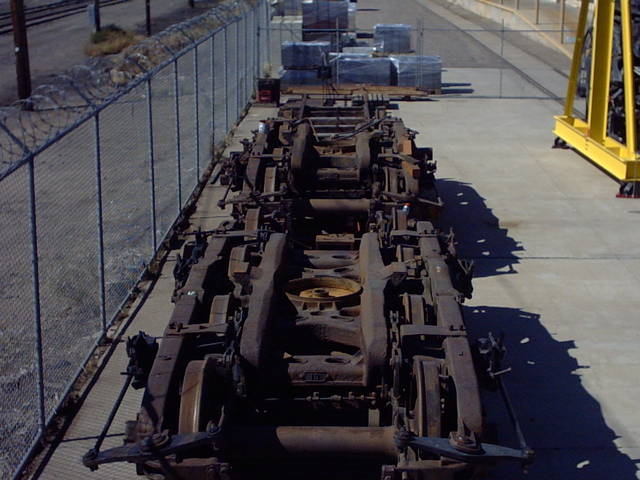

    The first photo is from last year, after needlescaleing and during Busing replacment.

    http://www.trainboard.com/railimages/data/500/agk.jpg

    Later that year, aftre the brake cylinders have been mounted.

    http://www.trainboard.com/railimages/data/500/ahg.jpg

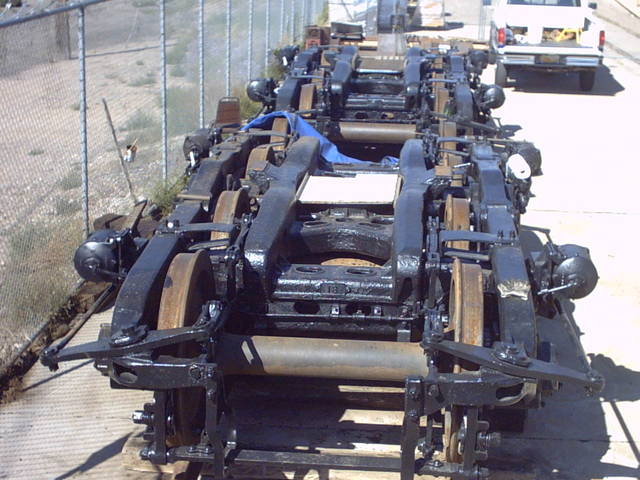

    And this was taken yesterday, we are just a week or so from finshing the trucks.

    http://www.trainboard.com/railimages/data/500/RailRunner.jpg

    All the photos were taken from the same place. (on top of the oil tank....)

    More to come,
    Kevin

  4. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,734
    653
    How much work remains to be finished, on the tender body? Before it can be placed back upon it's trucks?

    :D

    Boxcab E50

  5. William Cowie

    William Cowie TrainBoard Member

    2,113
    22
    38
    :thumbs_up: Kevin, I can't tell you how nice it is to see the progress you guys are making!! The 2900 ATSF locos are my all-time favorites!

    Great job!!!!!! :thumbs_up: :thumbs_up: :thumbs_up:

  6. Gunns

    Gunns TrainBoard Member

    376
    7
    15
    10-24-06

    Hi all,
    Just a quick note, regarding our Open House. The weather was great, the gate count was close to 1000, and the entertainment was first class. All the club members made heroic efforts in setup, event support, and cleanup. New memberships were made and community awareness was markedly improved. A number of the attendees were former shop workers that had experiance with "Our Girl" and we gleefully picked thier brains. (grin). More photos soon (I keep forgeting the camera) Ed Bukove our founding member was there with the art that his son did of the 2926, It looks even better in person. We have a SF box car that has been converted to an office / training center, and lectures, or films, or the 3751 sim was running all day. Much fun for all was achieved.
    More to come,
    Kevin

  7. fitz

    fitz TrainBoard Member

    9,709
    2,730
    145
    Kevin, great to hear good news from your group. Mr. Bukove's son, active here on Trainboard, certainly is talented. He has done a great drawing of the 2926.
    Hey, I want to know two things: 1) How did your baloon crewing thing go at the great baloon races? 2) What is the diameter of the tender wheels you guys are working on?
    Someone on another board is asking about tender wheels. You have first hand experience. Keep up the good work. :teeth:

  8. Gunns

    Gunns TrainBoard Member

    376
    7
    15
    Sorry I missed this one,
    It looks like we have about 4 hours of welding left on the trucks, some assembly, and a FRA brake system inspection. (much easier to do with the trucks isolated) On the water tender, we need to get the ground level fill system installed and some piping refurbished. As far as I know the oil tank is ready. Also the crane needs to be avalible, all in all it really depends on scheduling, certianly by the end of the year, and maby much sooner.
    Kevin




  9. Gunns

    Gunns TrainBoard Member

    376
    7
    15
    As far as I can tell the wheels on the tender are nominaly 44" in dia. Of course if they have been turned they are a little smaller, the brake shoes we are buying, are a standard fit to one of the diesels in current use, but I woefully ignorant in regards to modern motive power, so I can't say which one.

    As for he Balloon Fiesta, of the 11 days we had 8 good flying days but lost one of them shipping the balloon back to germany, and one when the wind was too strong for our special shape.
    This is a photo of the balloon,
    http://www.railimages.com/albums/kevinevans/afm.sized.jpg
    I got in one flight, and had a great time during the event. As for "Americas challange" gas race they launched Tues night and the last crew landed Thurs night in Florida, second place was on the South Carolina coast, 3rd place was in Georgia.
    Have fun,
    Kevin




  10. Jim Wiggin

    Jim Wiggin Staff Member TrainBoard Supporter

    5,229
    6,224
    103
    Thanks for the updates Kevin. I think it would be a good excuse to schedule a vacation out west when she is ready.

    Jim

  11. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,560
    22,734
    653
    Thanks for the update. Sounds great. Steady progress.

    :D

    Boxcab E50

  12. Gunns

    Gunns TrainBoard Member

    376
    7
    15
  13. fitz

    fitz TrainBoard Member

    9,709
    2,730
    145
    The tender truck looks brand new. Nice work. Is there a reason you refer to it as "truck 13?" :teeth:

  14. Gunns

    Gunns TrainBoard Member

    376
    7
    15

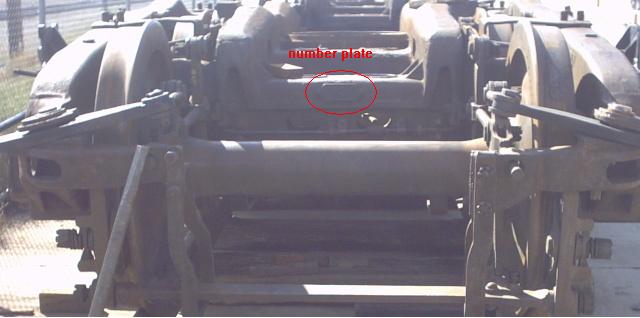

    The trucks have a number plate on the central bolster. our rear truck is labled 13, and our front truck is labled 4. As I understand it the tender shop would swap in what ever truck was ready when the equipment was in for rebuild, as long as it was the right type of truck. (8 wheel buckeye) As a matter of fact the two trucks are slightly different, the "bell crank" on the brake rigging on truck 4 are slightly curved, where the same crank on 13 is flat. If our guess is right the #4 truck was delivered with engine #3767 (the second locomotive delivered in its class) and truck 13 was delivered with 2906. (the sixth locomotive delivered with the 2900s order) both orders were equiped with the large "long distance" tenders. There is a possibility that thruck 13 came from a tender orignally assinged to one of the 5010s 2-10-4s as they also had the long distance tenders.


    Photo,

    http://www.trainboard.com/railimages/data/529/truckplate.JPG

    Have fun,
    Kevin





  15. Gunns

    Gunns TrainBoard Member

    376
    7
    15
    Just a quick note our latest news letter is up, and has some good photos in it. it is linked to our club page.
    Kevin

    http://www.nmrhs.org/

  16. Hytec

    Hytec TrainBoard Member

    13,965
    6,903
    183
    Great newsletter, Kevin. Thanks for the link.

  17. bravogjt

    bravogjt TrainBoard Member

    3,893
    1,304
    65
    Awesome progress! Thanks for sharing the newsletter.

    Ben
