    Last days for my Silver Valley RR.

    The Silver Valley RR is the route from module to module. I have a lot of fun with those Blackstone steam engines! But the mainline is short and with modules you have no grades.

    When I saw in Model Railroader a reprint from the Jan 1962 article from late John Armstrong "To Hardscrabble, the hard way: a track plan" I was hooked. He describes the PUEBLO & SALT LAKE RR in a 11 x 12-foot room. My room is about 13' x 16'!!

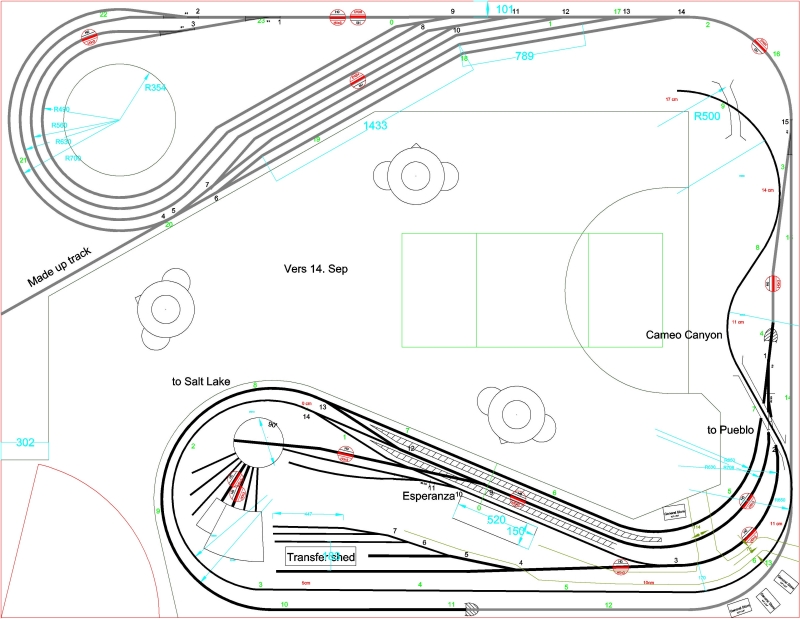

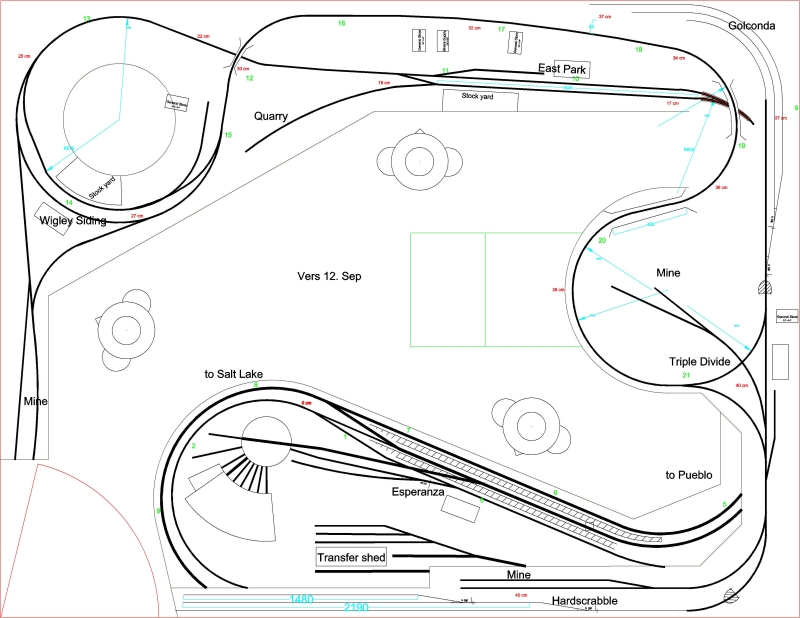

    Here's the drawing for my room.

    [​IMG]

    [​IMG]

    John Armstrong made Esperanza one end for the narrow gauge. I decided to run narrow gauge trains to staging. This way I had not to squeeze a transfer facility for gondolas into the space from Esperanza. Gondolas will go to Pueblo (staging) So I made all staging yard dual gauge. I know this requires a lot more dual gauge turnouts to built! I've started already with a first one, a #8 code 70 dual gauge turnout. Only the area from Hardscrabble will be a second level.

    I will be busy for the next years with track work, structures and scenery. This old time narrow gauge layout will be an alternative to my current 1975- 1985 "modern" Westport Terminal RR. And there will be about 150' main line to run narrow gauge trains.

    Wolfgang

  2. Geared Steam

    Geared Steam Permanently dispatched

    621
    10
    17
    Great plan Wolfgang, I will be looking forward to watching this build.

  3. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,213
    9,886
    652
    What will you be doing with Silver valley? Storing it? Selling? Continuing to show it?

  4. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    I will take the modules still to FREMO meetings. But not all modules will fit into my car. Eventually I will sell Silver Creek. Better than stored under the layout.
    For the next time I have to empty the room and make the background.

    Wolfgang

  5. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

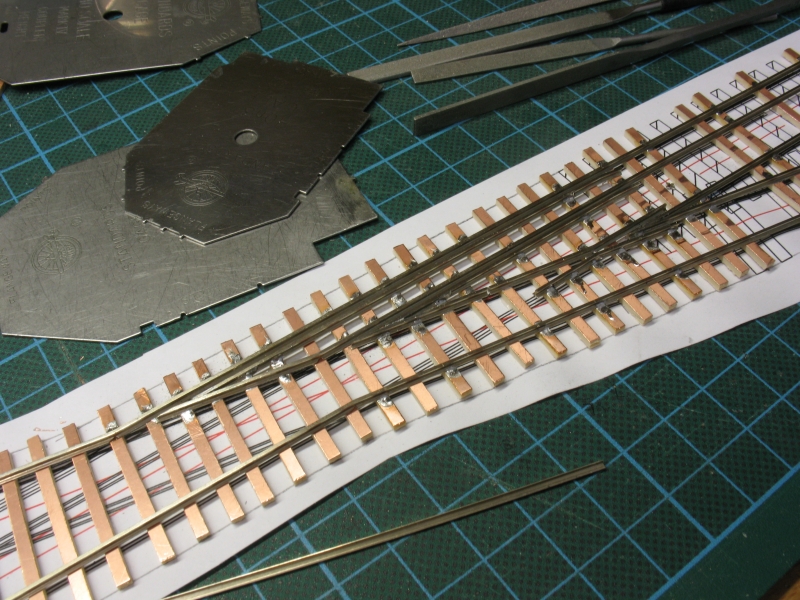

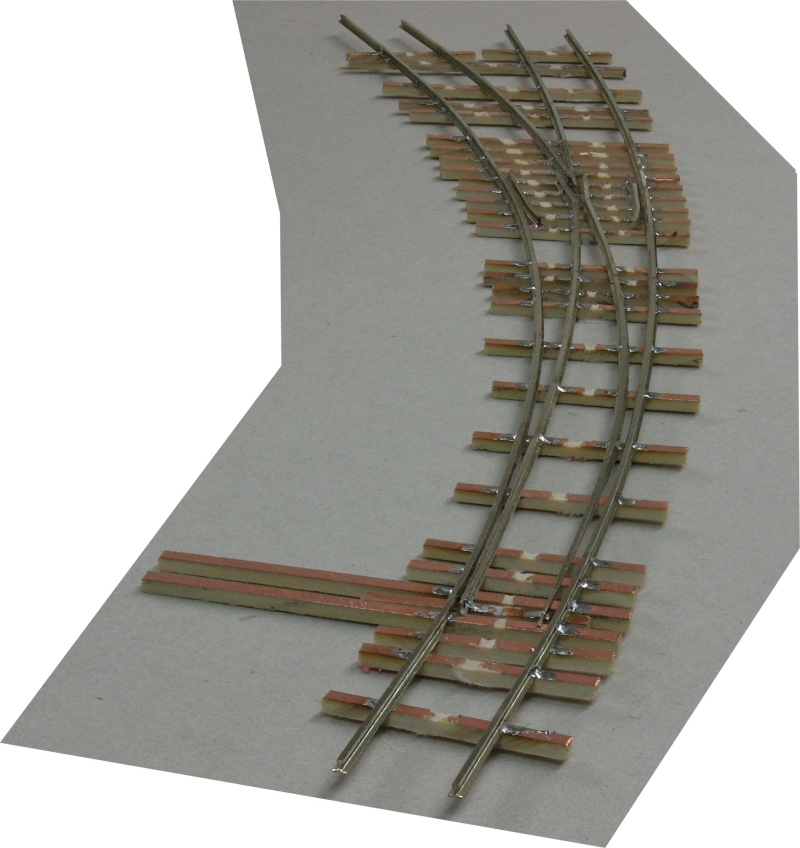

    Waiting for the empty room I can built turnouts. There're some special turnouts like this: curved code 55, 800mm-500mm (31.5''-20'')

    [​IMG]

    Wolfgang

  6. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

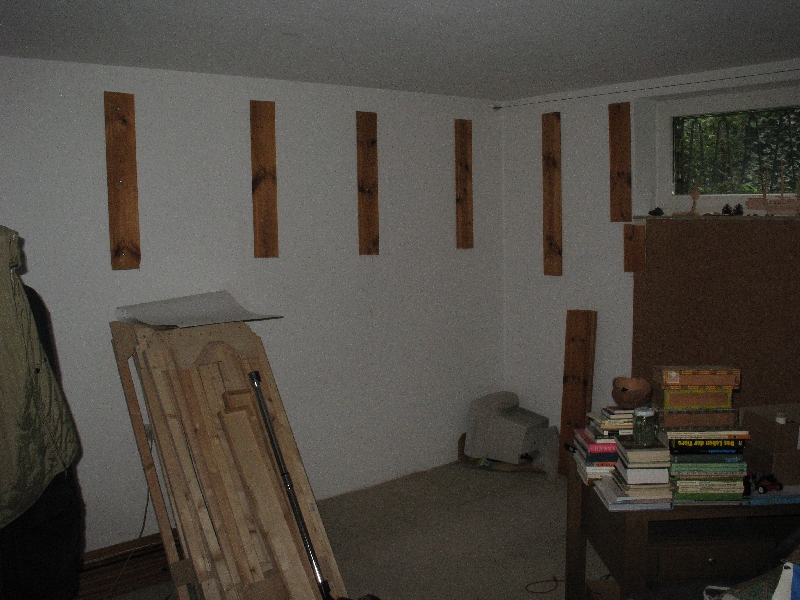

    Now I've started preparing the room for the backdrop.

    [​IMG]

    Still some work to do....

    Wolfgang

  7. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    ... and more trackwork, Esperanza needs a crossing:

    [​IMG]

    Wolfgang

  8. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

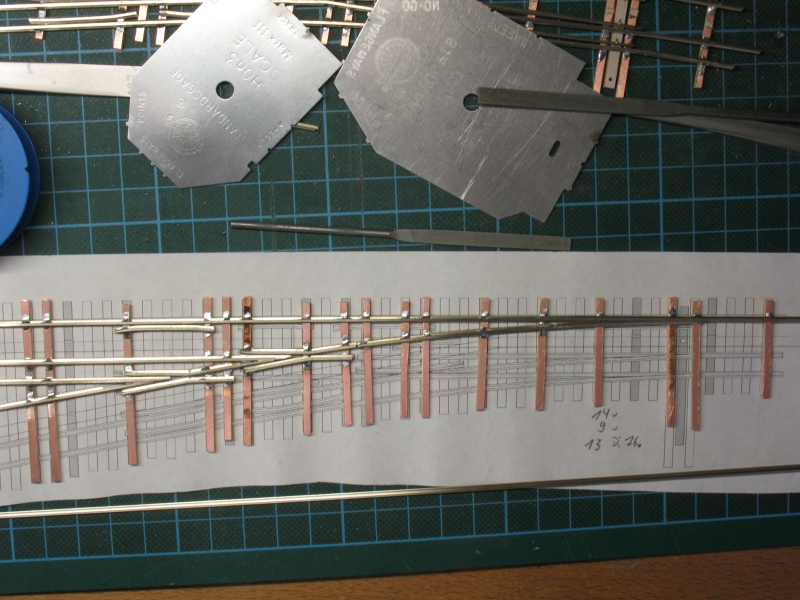

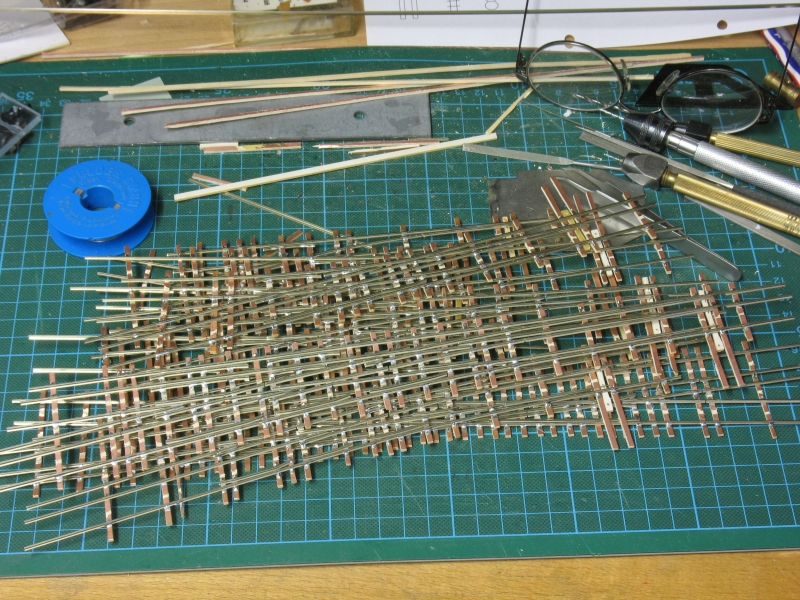

    I've built more turnouts, all turnouts needed for Esperanza are finished. These are two code 70 turnouts, a #8 dual and a #6 standard turnout. And quite a few different code 55 turnouts, mostly dual.

    [​IMG]

    Now comes staging yard.

    Wolfgang

  9. Hytec

    Hytec TrainBoard Member

    13,129
    3,936
    183
    Wow, I am impressed with your quantity and quality of product output. It almost is equivalent to an automated factory. I am curious if you take time to eat and sleep....:tb-biggrin:

  10. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

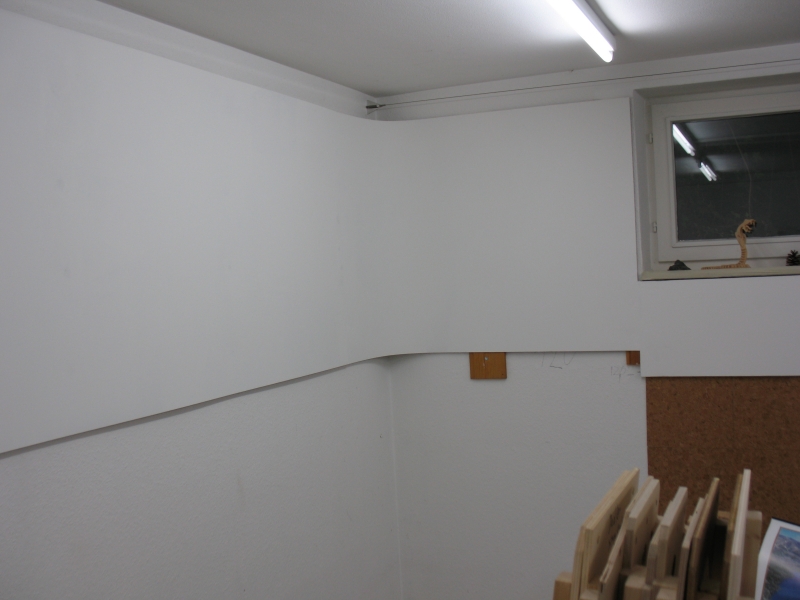

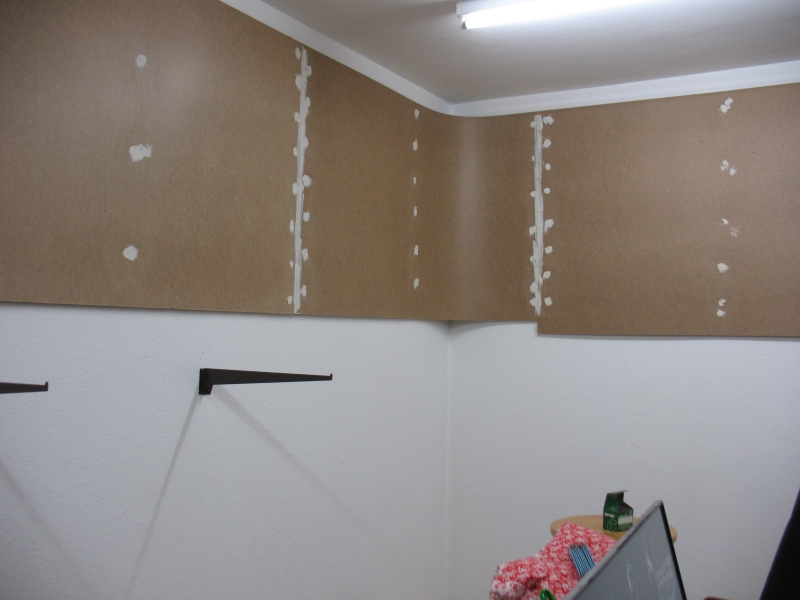

    And between turnout building I'm busy with room preparation. Now I've installed the MDF sheets along the wall.

    [​IMG]

    Wolfgang

  11. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    I've painted the sheets with white as primer.

    [​IMG]

    and I'm busy with building turnouts for staging, I need still ten more.

    [​IMG]

    Wolfgang

  12. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,213
    9,886
    652
    Dual gauge. I'd sure like to sit and watch you build one of those.

  13. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    Ken, this would be a long vid.
    Here's my latest with video for a standard turnout.

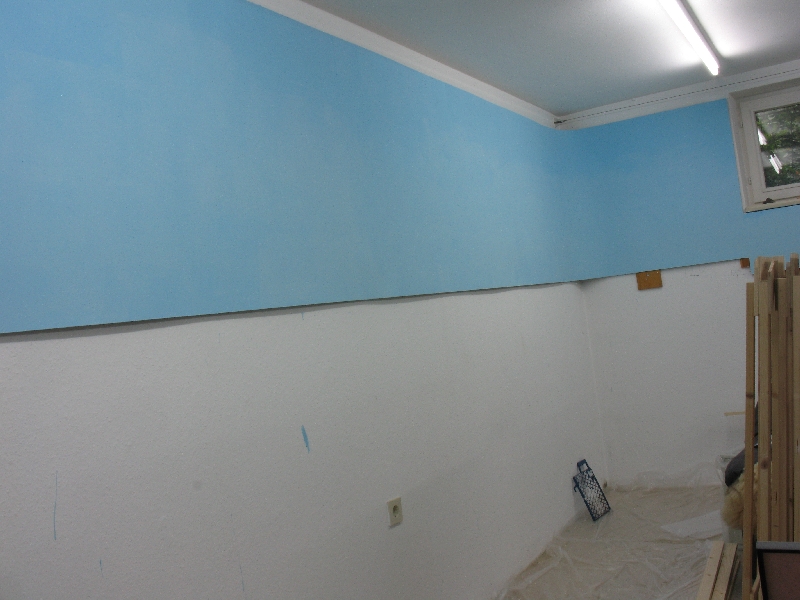

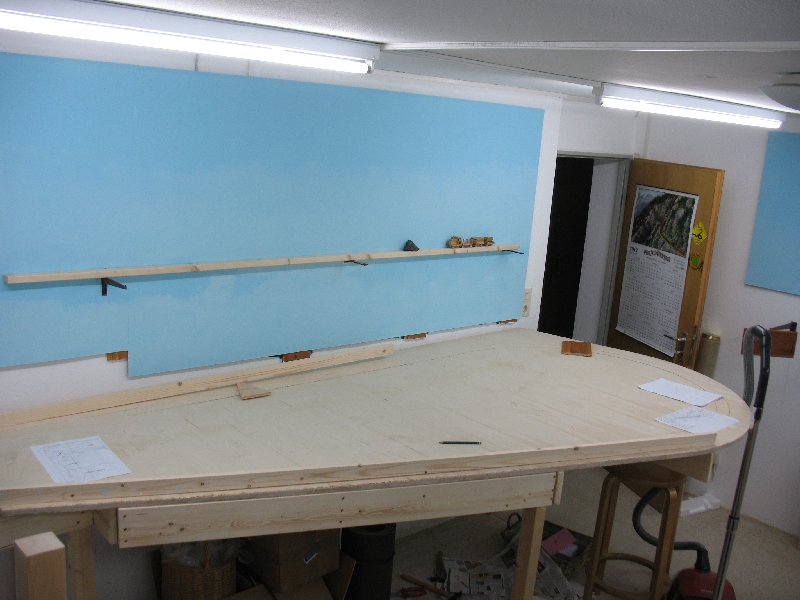

    I was busy with paintings, here's the finished backdrop.

    [​IMG]

    Wolfgang

  14. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    The first benchwork segment, with help from my son.

    [​IMG]

    Wolfgang

  15. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    19,938
    14,587
    243
    Nice job so far on the new empire! Love the custom turnouts. The dual gauge turnout must be a bear to build.

  16. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49
    Now I've published my wiring for the staging yard.
    I have 12 turnouts, powered with Tortoise. And I use a rotary switch to select the track (there're 6 tracks).
    This circuit works, I use it already at my Westport Terminal RR.
    I had only one problem, I lost the records, so I had to develop it new. :angry:

    Wolfgang

  17. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

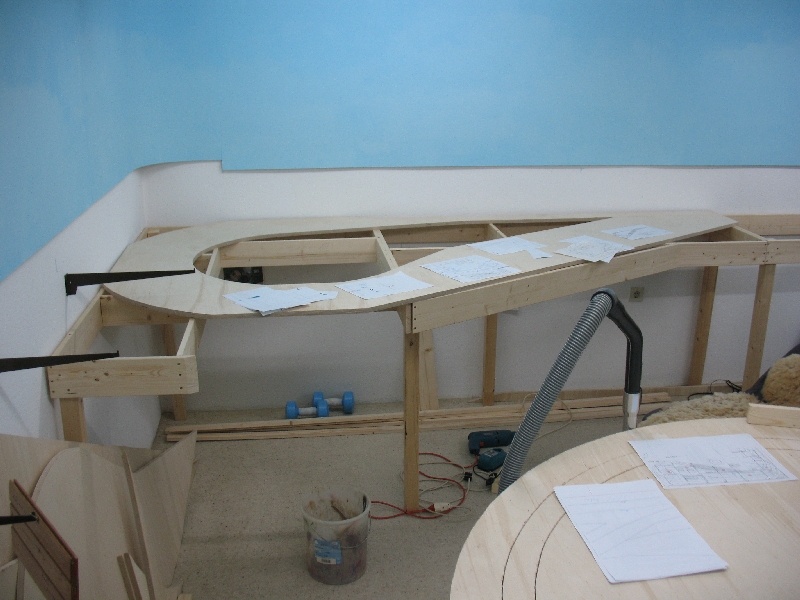

    The benchwork goes on.

    [​IMG]

    Wolfgang

  18. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,213
    9,886
    652
    Looks quite stout! I am very interested in seeing how the benchwork all comes together, when the upper deck is added.

  19. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

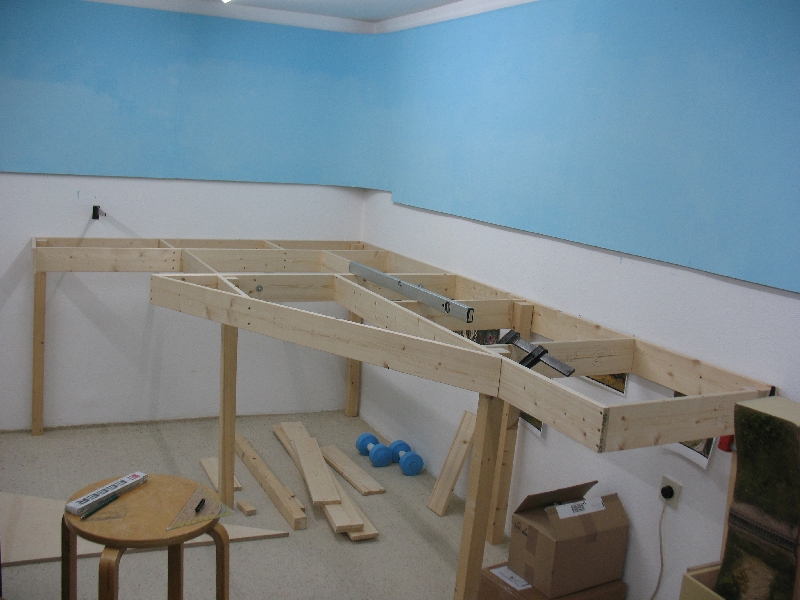

    Update
    All segments are on their legs and I'm working with the plywood sheets.

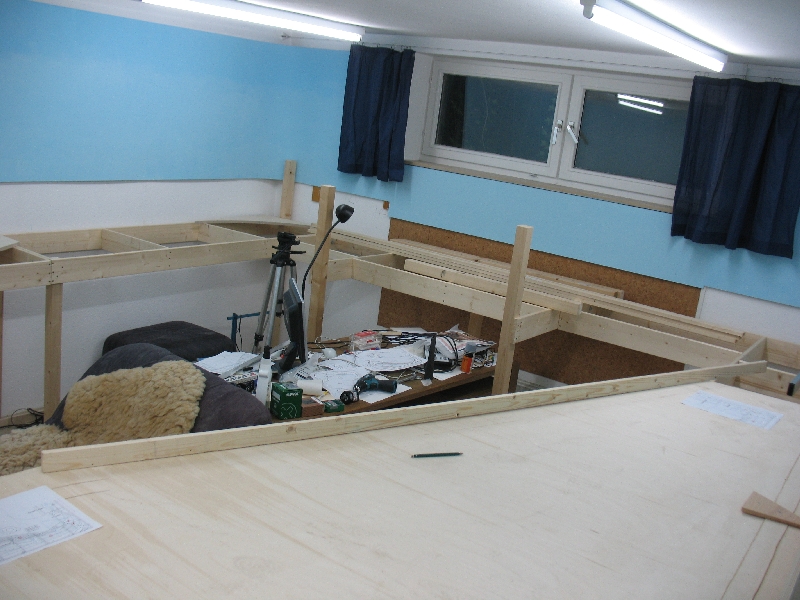

    Here's the future staging yard Pueblo / Salt Lake City.

    [​IMG]

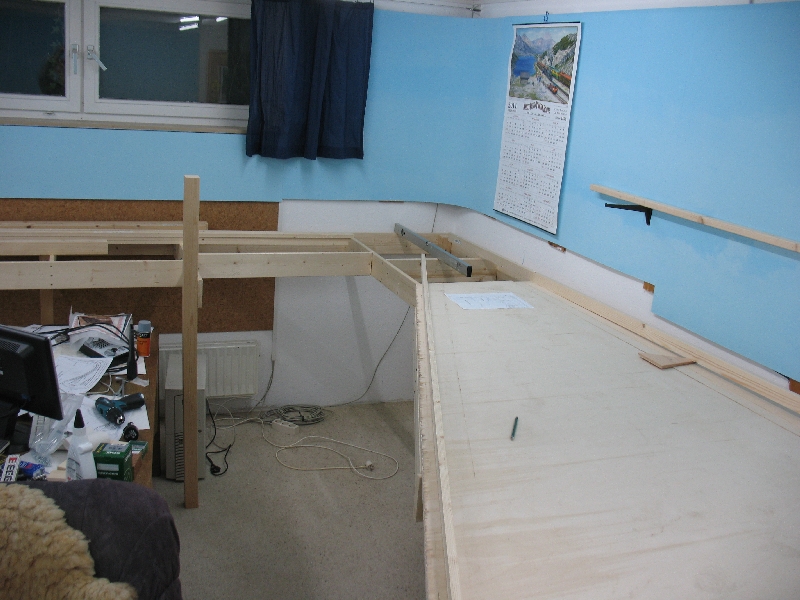

    Under t window the place for the mainline (hidden) and the narrow gauge line through Cameo Canyon.

    [​IMG]

    Esperanza

    [​IMG]

    [​IMG]

    Wolfgang

  20. Wolfgang Dudler

    Wolfgang Dudler Passed away August 25, 2012 TrainBoard Supporter In Memoriam

    3,794
    229
    49

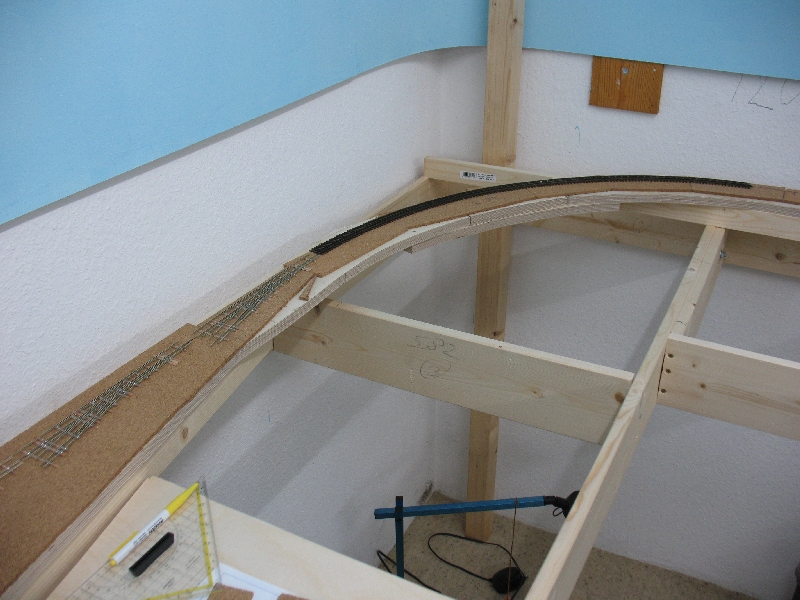

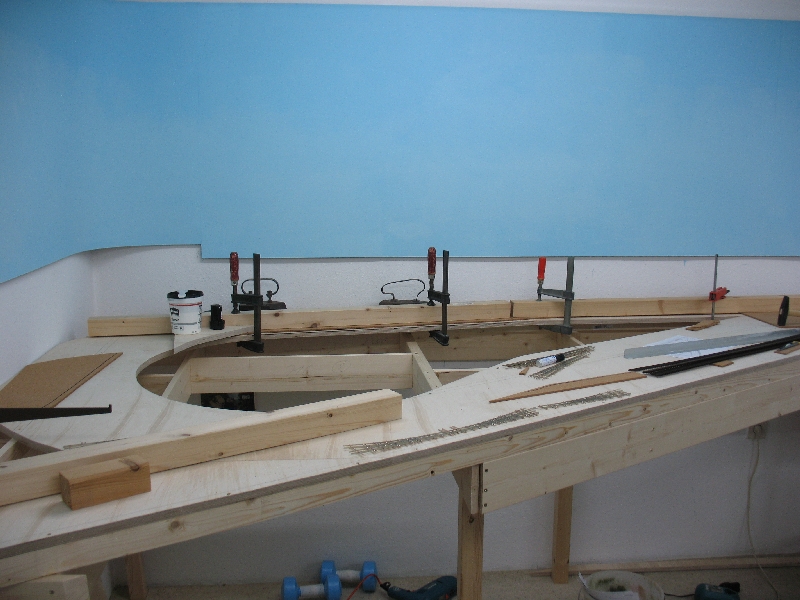

    And now the road bed, I use cork. This is the staging yard.

    [​IMG]

    [​IMG]

    Wolfgang
