The Bridge and Tunnel thread

Primavw Apr 23, 2014

  1. Cajonpassfan

    Cajonpassfan TrainBoard Supporter

    1,105
    24
    25
    Not much in the way of impressive bridges on Cajon Pass; does this count? Middle pier yet to be installed...
    Otto K.


    Attached Files:

  2. Kenneth L. Anthony

    Kenneth L. Anthony TrainBoard Member

    2,743
    464
    49
    Impressive bridge? Depends on what impresses one. Impressive SCENE? Yeah GOLLY!

  3. Eagle2

    Eagle2 Staff Member TrainBoard Supporter

    5,701
    441
    82
    Not perhaps a massive, scene-dominating bridge, but a nice capture of typical railroading.

  4. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    343
    149

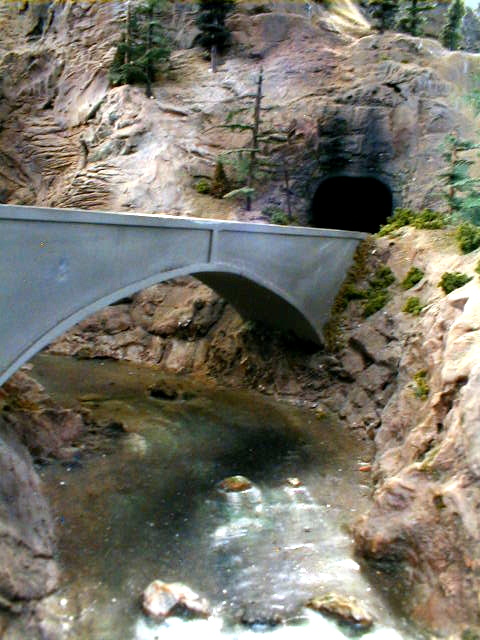

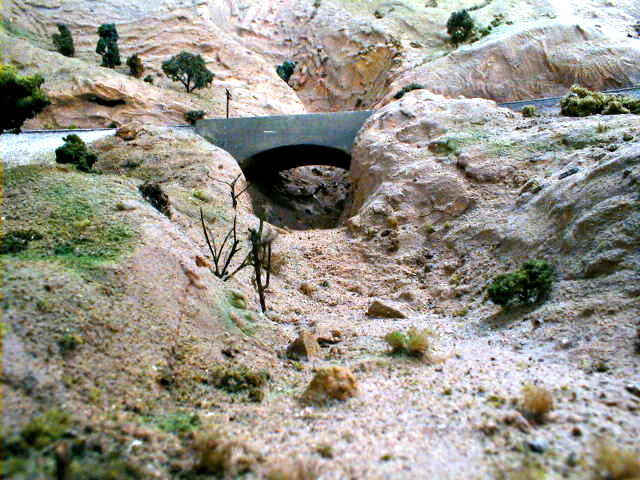

    These are some of my favorite bridges on the old Belmont Shore club.

    [​IMG]

    [​IMG]

    [​IMG]

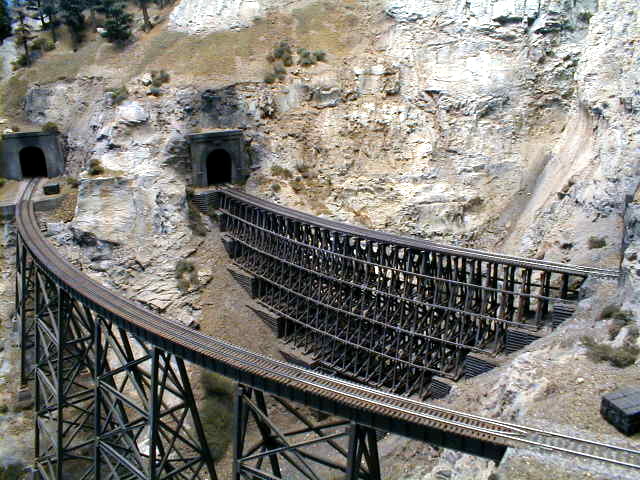

    This is the big one.

    [​IMG]

  5. Grey One

    Grey One TrainBoard Supporter

    8,315
    1,078
    110
    One of my favorite model bridges was a 40' flat car re-purposed as a one laine bridge across a gully.

  6. Eugen Haenseler

    Eugen Haenseler TrainBoard Member

    525
    1,201
    38
    That's mine

    [​IMG]

    [​IMG]

  7. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,646
    25,898
    243
    Nice modeling there Eugen. I think it captures the look of the desert Southwest in North America quite well. Thumbs up.

  8. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,273
    10,027
    652
    I really like this one. I can hear the water rushing past!

  9. Eagle2

    Eagle2 Staff Member TrainBoard Supporter

    5,701
    441
    82
    Eugen, that first one is quite something - an over/under, if you will. Nicely made!

  10. silver69

    silver69 New Member

    2
    0
    6

    I know that bridge!
    I pass it when driving to Wrightwood.
    Nice work.
    Steve

  11. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,646
    25,898
    243
    Welcome to Trainboard Steve. Yeah, I think I even have a photo of that bridge somewhere. Well, at least the new replacement might be lurking in there somewhere.

  12. Cajonpassfan

    Cajonpassfan TrainBoard Supporter

    1,105
    24
    25
    Lol, thanks Steve! Of course you see it from the "new" Hwy 138 overpass, whereas I still have the at grade crossing with wig-wags on my "circa 1950" layout. Welcome to TB!
    Otto K.

  13. YoHo

    YoHo TrainBoard Supporter

    5,491
    1,923
    91
    There are 2 there now. On for track 3 and of course the SP Palmdale cutoff as well.

  14. DCESharkman

    DCESharkman TrainBoard Member

    3,793
    835
    58
    I got to love this one the best because #3027 was the very first locomotive I purchased to start my adventure into N scale and model trains.

  15. Rodsup9000

    Rodsup9000 TrainBoard Member

    113
    84
    17
    I've been working on my Keddie Wye bridges. The mainline line side is finished except for the handrails and weathering. That will get done one the scenery is complete. As soon as I have the mainline finished up back up to the helix, I'll add the walkways and rail to it.

    For tie strips, I printed them out on my 3D printer, added pc board ties, then soldered code 55 rails and code 40 guardrails.

    Here is the tie strips

    [​IMG]

    With the pc boards glued on.

    [​IMG]

    Installed on the layout


    [​IMG]

    [​IMG]

    [​IMG]

    Rodney

  16. WaltP

    WaltP TrainBoard Member

    19
    4
    8
    Here's my T-Trak bridges

  17. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    19,954
    14,722
    243
    Great stuff, everyone! Keep it coming!

  18. Bruce-in-MA

    Bruce-in-MA TrainBoard Member

    995
    0
    23
    It's been ages since I've posted here, but I couldn't resist this topic. :)

    Here's my pond trestle:
    [​IMG]

    Another view:
    [​IMG]

    Canyon bridge:
    [​IMG]

    Another view:
    [​IMG]

  19. SYROUS

    SYROUS TrainBoard Member

    345
    20
    12
    Very impressive bridge. Great modelling.

  20. Pete Nolan

    Pete Nolan TrainBoard Supporter

    10,582
    181
    122
    Here's a few of mine. They are sometimes tucked into the background.

    [​IMG]


    [​IMG]


    [​IMG]

    All of mine are scratchbuilt models of real bridges, or at least spans of real bridges.
