    Little Rock Tunnel Construction.

    I started to build LR tunnel today.

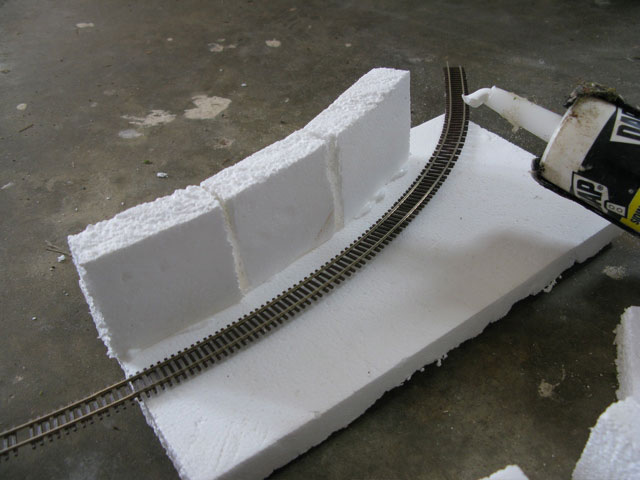

    First, I built a frame for the tunnel using bits of Styrofoam.

    [​IMG]

    The main sheet of foam will be the roof. The track is merely being used as a guide for gluing the walls.

    (BTW, if you clicked "Last Page" and this is the first thing you see, I posted more info on this tunnel and layout on the previous page.)

  2. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

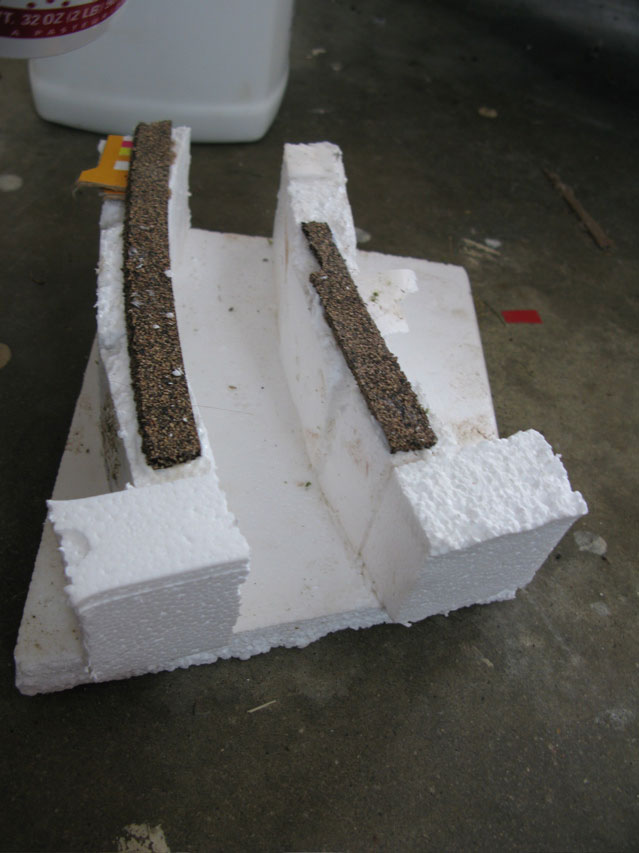

    The completed frame. The foam was a bit uneven so he strips of cork are shims to even things out.

    [​IMG]

  3. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

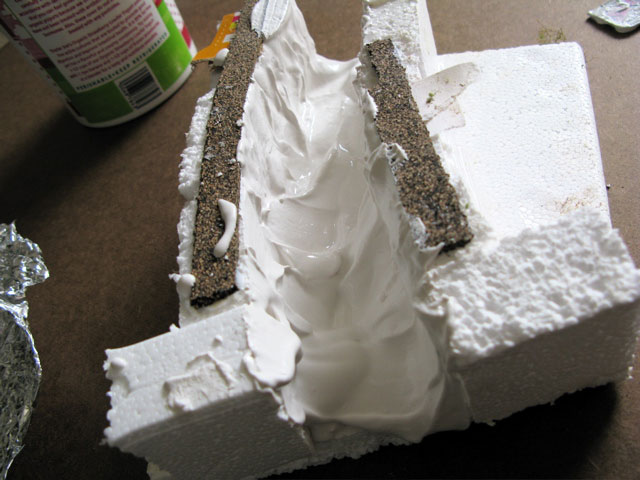

    Next plaster was poured on so the frame.

    [​IMG]

  4. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

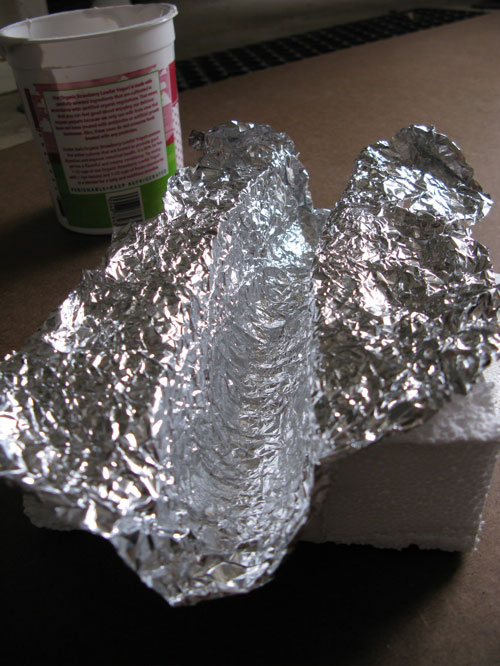

    And then Crumpled up tin-foil was pressed into the plaster. I pressed it into the right shape for a tunnel liner.

    [​IMG]

  5. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

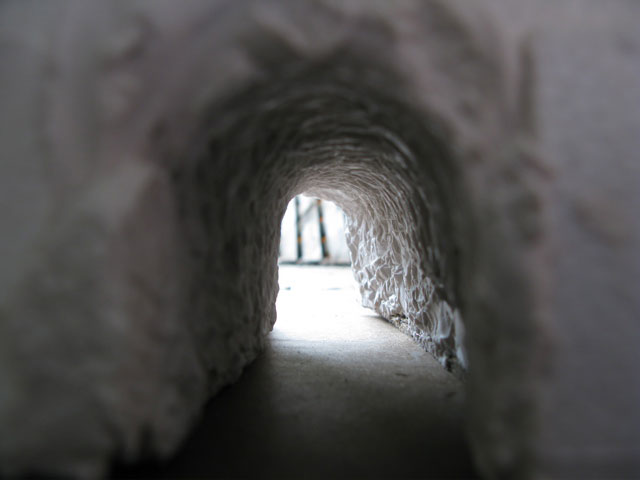

    Once the plaster dried I pulled out the foil and here is the result.:)

    [​IMG]

  6. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

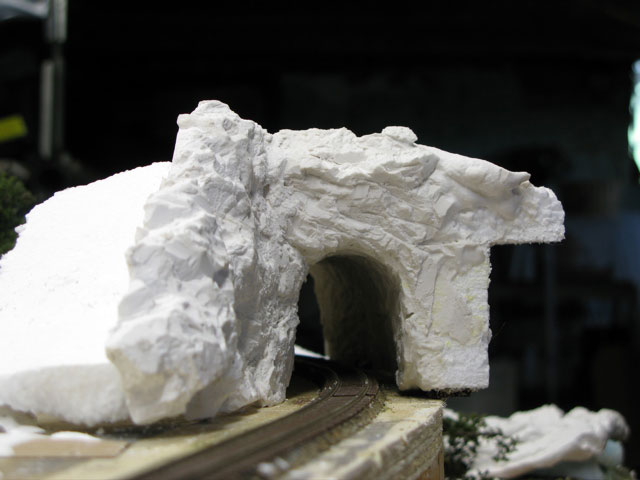

    In place on the layout with a first pass of rock carving on the portal face.

    [​IMG]

  7. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

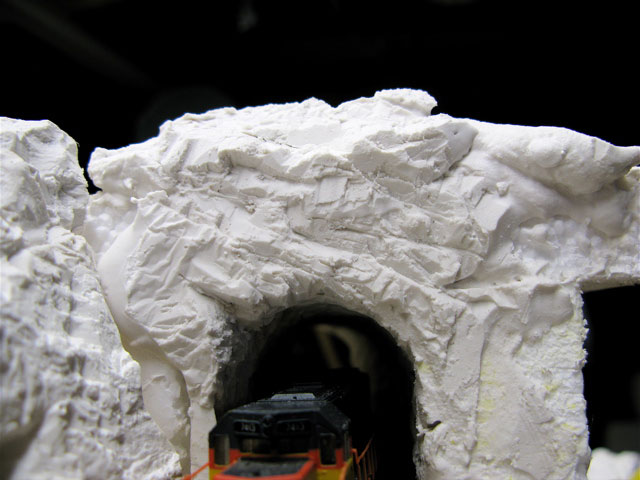

    Close-up on the portal face.

    [​IMG]

    I am trying to match the textures on the real rock face much as possible. It still needs some work but its getting there.

    The real rock face.

    [​IMG]

    That's all for tonight.

  8. jpwisc

    jpwisc TrainBoard Member

    1,766
    452
    35
    Caleb,
    You make it look too easy, nice work.

  9. Cajonpassfan

    Cajonpassfan TrainBoard Supporter

    1,105
    33
    25
    Caleb, very nice; can't wait to see it colored up like the prototype. Great work!!!
    Otto

  10. CSXDixieLine

    CSXDixieLine Passed Away January 27, 2013 In Memoriam

    1,457
    0
    21
    Very nice, and good research photos too. Jamie

  11. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Wow....nice job! Thats looking really good. Look forward to more! :)

  12. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Catching up on your posts, I think I am going to be ordering some of the Supertrees to add to my layout. Great job as usual! :)

  13. RBrodzinsky

    RBrodzinsky November 18, 2022 Staff Member TrainBoard Supporter In Memoriam

    5,685
    2,780
    98
    What a great way to get a "rock" tunnel.. I was wondering what to do to create one, now I know! Great job!

  14. CraigN

    CraigN TrainBoard Supporter

    304
    13
    22
    Very nice work Caleb! You sure are talented!

    Craig

  15. CSXDixieLine

    CSXDixieLine Passed Away January 27, 2013 In Memoriam

    1,457
    0
    21
    I just built my first batch of SuperTrees last night, using Caleb's method described earlier in this thread. I can't believe how good they look temporarily planted on the layout. $20 for the bulk box from the LHS makes me a happy model railroader. :) They really are the way to go, and following Caleb's technique takes just a few minutes per tree.

    Jamie

  16. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Sounds great Jamie! :)

  17. N7CZ

    N7CZ TrainBoard Member

    352
    53
    11
    That tunnel looks great!

  18. MOPMAN

    MOPMAN TrainBoard Member

    1,429
    1
    23
    Great job. Looking forward to seeing the finished product.

  19. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19
    Thanks guys!

    Jamie, glad to hear the Super Trees are working out for you.

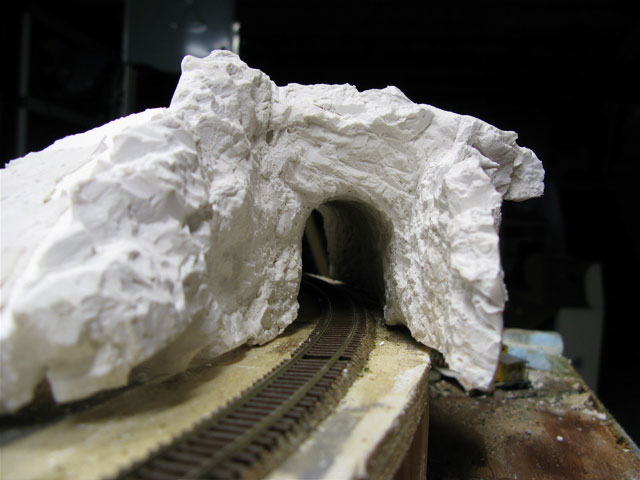

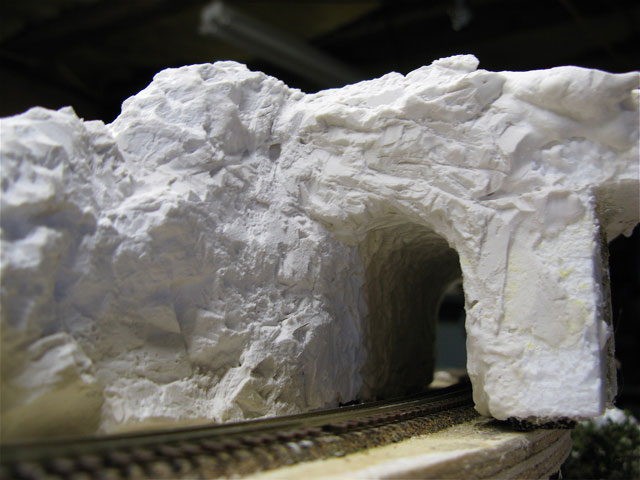

    Today I attached the "wing wall"(I think I heard that term used somewhere to describe this..) rock formation to the tunnel. The wing wall is a modified casting. I attached it using plaster.

    [​IMG]

    [​IMG]

    The next step will be adding a wing wall to the other side.

    Last edited by a moderator: Jun 11, 2010
  20. Caleb Austin

    Caleb Austin TrainBoard Member

    533
    123
    19

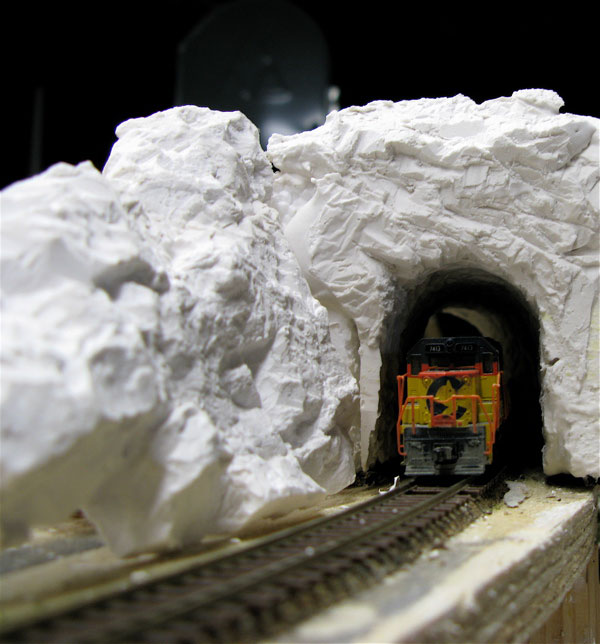

    And now the second wall is on. With this, the plaster phase on the western portal is about finished. :)
