Weathering Freight Cars - Techniques and Examples

corporaldan Oct 3, 2008

  1. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    Here are some pics of the gondolas i weathered a few years ago. i first took a lighter and melted the edges to give them that beat up look . i also heated up a screw driver with a lighter and then used the heated surface to bent the walls of the gondola. i painted several layers of rustall on it to get the rusty look.
    The loads however, are made of actual scrap iron that i got out of a real gondola car. i jumped inside the empty car and picked up these metal shavings from the bottom of the car. some of these shavings that i have would look good on ho scale models and some are small enough to look goood on n scale.


    Attached Files:

  2. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    here is another car i weathered using the same technique


    Attached Files:

  3. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    this boxcar was pretty easy to weather i just painted rustall on with a cheap paintbrush. it took me three coats.


    Attached Files:

  4. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    these cars were weathered with a different technique that i created myself. i simply just took an old can brown boot polish and applied it on the cars with a q tip. i then took a tissue and wiped off some of the excess polish. i never spray any kind of finish on it to preserve. I did these cars about four years ago and as you can see the polish stays looking good.
    I havent gotten around to it yet, but i suppose this same technique would work on coal hoppers with black boot polish.


    Attached Files:

  5. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    that chessie system hopper in the previous pic was done with rustall.
    my mistake

  6. rray

    rray Staff Member

    8,277
    9,277
    133
    Nice work Dan! I have to try the melting to make dents technique. I used techniques from Tom Mann's Weathering Guide to weather these cars, but I want to try a gondola with the melt technique now.

    [​IMG]

    [​IMG]

  7. MOPACJAY

    MOPACJAY TrainBoard Member

    349
    31
    14
    Nice work guys[​IMG]
    Here is a Bachmann car with the roofwalk removed and ladders shaved down.
    [​IMG]
    Another Bachmann car with a replaced roofwalk made from a cutdown Kadee HO roofwalk.
    I really like the shoe-polish idea.I am looking forward to trying that one.

  8. GaryHinshaw

    GaryHinshaw TrainBoard Member

    932
    5
    24
    Mmm, I love weathered cars. Here are a few recent boxcars:

    [​IMG]

    [​IMG]

    Nice work on the gons there Dan. I haven't worked up the courage to give one that kind of beating yet. ;) Let's see some more!
    -Gary

    Last edited by a moderator: Oct 4, 2008
  9. CraigN

    CraigN TrainBoard Supporter

    304
    13
    22
    Very nice work to all !

    Those gondola loads look awesome in those weathered cars.

    I can't wait to dirty up some of my stuff after looking at these pics.

    Craig

  10. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Looks good everyone!:)

  11. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152

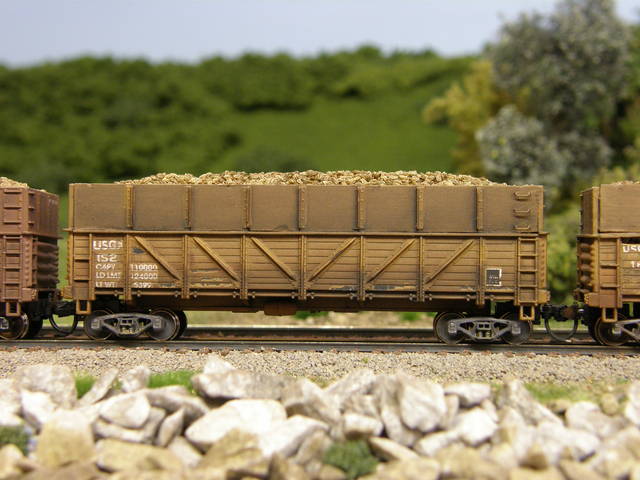

    I've had the most fun weathering my sugar beet train cars. Each is different, and makes a great looking train. :)
    [​IMG]

  12. Biased turkey

    Biased turkey TrainBoard Member

    231
    0
    14
    I like weathering threads . Nice work everyone.
    ConrailDan, that old beaten gondola is looking good
    pray59, thanks a lot for the link. You did a nice job applying that Tom Mann's tutorial weathering techniques.
    MOPACJAY, well done. Could you elaborate about your weathering techniques ?
    GaryHinshaw, great weathering, not overdone. I would like to have more details. Are you using atrist's oil paint ?
    OC Engineer JD, that sugar beets car sure looks good. I thought that all the sugar in U.S. ( and Canada ) was produced from sugar cane.
    Here is my contribution:
    GTW weathered using burnt sienna oil paint, airspray of roof brown, grimmy black and L&N gray plus a wash of grimmy black. I think that just a single wash of grimmy black on any new car alredy makes a big difference in killing that out of the box shine.


    Jacques

    [​IMG]

  13. corporaldan

    corporaldan TrainBoard Member

    507
    24
    16
    good job! i like that gtw car

  14. Biased turkey

    Biased turkey TrainBoard Member

    231
    0
    14
    Thank you for the encouragement ConrailDan.

    I forgot to mention one important step: Before anything else, I airsprayed a very diluted coat ( 1 part paint for 16 part alcohol ) of the same base color as the boxcar ( in my case, Polly Scale # 414358 GTW blue ) . When that coat is dry, I take some off at random places using a BrightBoy rubber track cleaner.

    Jacques

  15. Powersteamguy1790

    Powersteamguy1790 Permanently dispatched

    10,785
    10
    115

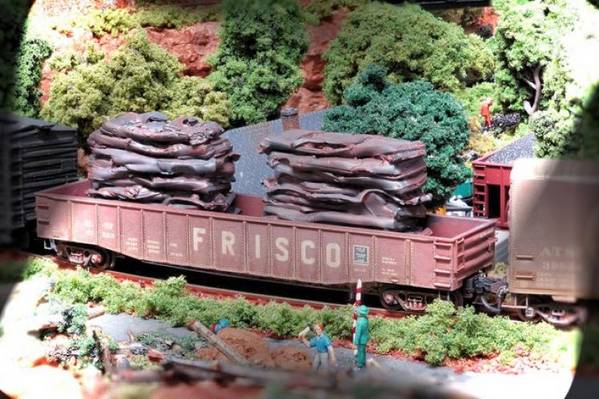

    A Frisco Gondola with a crushed car load..

    [​IMG]

  16. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    This is a boxcar made out of wood. It's an old Gloor Craft kit, painted and weathered some years ago.
    [​IMG]

  17. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Sure can't tell its wood!
    [​IMG]

  18. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Here's a coil car I banged up....
    [​IMG]

  19. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Other side....really hate doing this to an ATSF car. ;):)
    [​IMG]

  20. OC Engineer JD

    OC Engineer JD Staff Member TrainBoard Supporter

    12,782
    1,109
    152
    Most of the focus was on the lids....
    [​IMG]
