1. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
    Excellent work, Gerd! Yep, the long hood is too wide due to the motor. Until recently, I thought the 7mm internal width was as thin as I could go. Then I discovered Mabuchi K30 motor. It is 6mm in one direction, has equal power and it's readily available. Or it WAS available. Orders from China are becoming difficult. One of my orders was canceled by the seller. Things are getting serious around the world...

    Anyway, the future looks good for Z with this motor when things get back to normal.

    cjm413 likes this.
  2. cjm413

    cjm413 TrainBoard Member

    112
    40
    11
    I could live with the difference for lack of a later phase S4 in Z. I also wouldn't hesitate to say that it's closer to a S4 than my MTL SD40-2 in CP paint is to a proper GMD SD40-2...

    However, given this is a Shapeways shell, the drawing for the S2 shell could theoretically be used as a starting point for a S4, S1, S3, etc in the future that accounts for any differences from a S2...

    Sent from my LM-X410(FG) using Tapatalk

    shortpainter likes this.
  3. rray

    rray Staff Member

    7,252
    3,882
    123
    I still vote for an RS-11 shell that uses the guts of the inexpensive AZL GP38-2 or a USRA 0-6-0 that uses the inexpensive Marklin 0-6-0 guts. :D hint hint.

  4. cjm413

    cjm413 TrainBoard Member

    112
    40
    11
    GP38-2 has 34' distance between truck centers, RS11 has 31'.

    AZL GP7/GP9 chassis would be a better match.

    Maybe you NP fans could use a U25C instead?

    Depending on the wheelbase of the Rokuhan shorty powered trucks, maybe two powered trucks from two shorties could be used for two innermost axles of the Trimount trucks with spare wheelsets salvaged from the two non-powered trucks covering the outermost axles?

    Frame would be analogous to the SW1500 chassis that uses two powered trucks and a new dual shaft motor...unless there's enough room to fit the two single-shaft motors...

    Thoughts?

    Sent from my LM-X410(FG) using Tapatalk
    View attachment 214439

    Last edited: Mar 16, 2020
    shortpainter and Kurt Moose like this.
  5. rray

    rray Staff Member

    7,252
    3,882
    123
    On the RS11, I was thinking of just using the trucks and motor to space them correctly at 31' truck centers, with the shell and frame being much like the SW1500. I don't have much confidence in that thin tiny gear atop the shorty as being robust enough to survive pulling even a 20 car train. 3 loops and the teeth could be worn and skipping. That gear's teeth are somewhat pointy and only about .020" wide at it's widest point.

    And oh yes, I would so much love to have a U25C, U28C, and U33C in NP. Alas... I have resolve to never purchase another locomotive that the NP did not have.

    cjm413, shortpainter and Kurt Moose like this.
  6. minzemaennchen

    minzemaennchen TrainBoard Member

    1,486
    409
    31
    I use GP7 chassis for my RS11 models, fits perfectly

    cjm413, shortpainter, rray and 2 others like this.
  7. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
    As much as I would love to make one, the placement of Marklin's BR89 motor won't allow a USRA 0-6-0 shell to fit. Maybe the motor can be replaced or it's position can be modified. It's worth an attempt at least. I'm still studying the Marklin BR89 for all possibilities.

    rray and cjm413 like this.
  8. Curn

    Curn TrainBoard Member

    695
    319
    28
    Does anyone have a Rokuhan 2-6-4? It looks like it could be a decent candidate for a 2-6-0 conversion, but it kind of depends on how far back the motor is into the coal bunker. That bunker would have to go an then the motor would potentially be sticking out the back.

    Kurt Moose likes this.
  9. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    19,728
    13,387
    243
    Sure makes it easier to keep hobby spending within the budget! I do the same, for my chosen era and prototype.

    rray likes this.
  10. minzemaennchen

    minzemaennchen TrainBoard Member

    1,486
    409
    31
  11. Kurt Moose

    Kurt Moose TrainBoard Member

    6,756
    5,241
    114
    Beautiful!!(y)(y)(y)

  12. JoeS

    JoeS TrainBoard Member

    2,770
    401
    49
    As always fantastic! :)

  13. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
    My latest project.

    bostonjim likes this.
  14. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
  15. Kez

    Kez TrainBoard Member

    585
    87
    23
    Holy cow, that is beautiful!

  16. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
    Thank you! I’m attempting the green Southern paint scheme next.

    Kurt Moose and Kez like this.
  17. ZFRANK

    ZFRANK TrainBoard Member

    922
    472
    24
    Finally after 2 and a halve month patiently waiting, my S2 arrived from Shapeways. Shortly after I ordered it they postponed production of metal parts... but now the fun can start.
    [​IMG]

    Last edited: Jun 24, 2020
  18. rray

    rray Staff Member

    7,252
    3,882
    123
    Yay! Welcome to the S2 club Frank!

    shortpainter likes this.
  19. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16
    I'm glad to see something is getting printed. The delays are outrageous.

  20. shortpainter

    shortpainter TrainBoard Member

    265
    847
    16

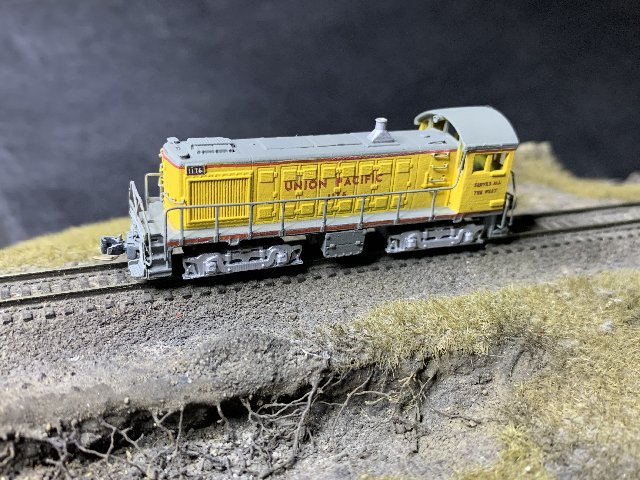

    A new S-2.

    IMG_2378.jpg IMG_2374.jpg IMG_2375.jpg IMG_2376.jpg

    The inspiration


    ddechamp71, Curn, Kurt Moose and 7 others like this.
