AZL GP38-2

pmx Nov 25, 2011

  1. lumming

    lumming New Member

    1
    0
    5
    Hello everybody,
    today I got a mail from Todd from Small Wonder-Z . The GP38-2 in CP Rail version will be released in October this year.

    Best regards , Rolf from Germany

  2. zscaler

    zscaler TrainBoard Member

    1,286
    157
    28

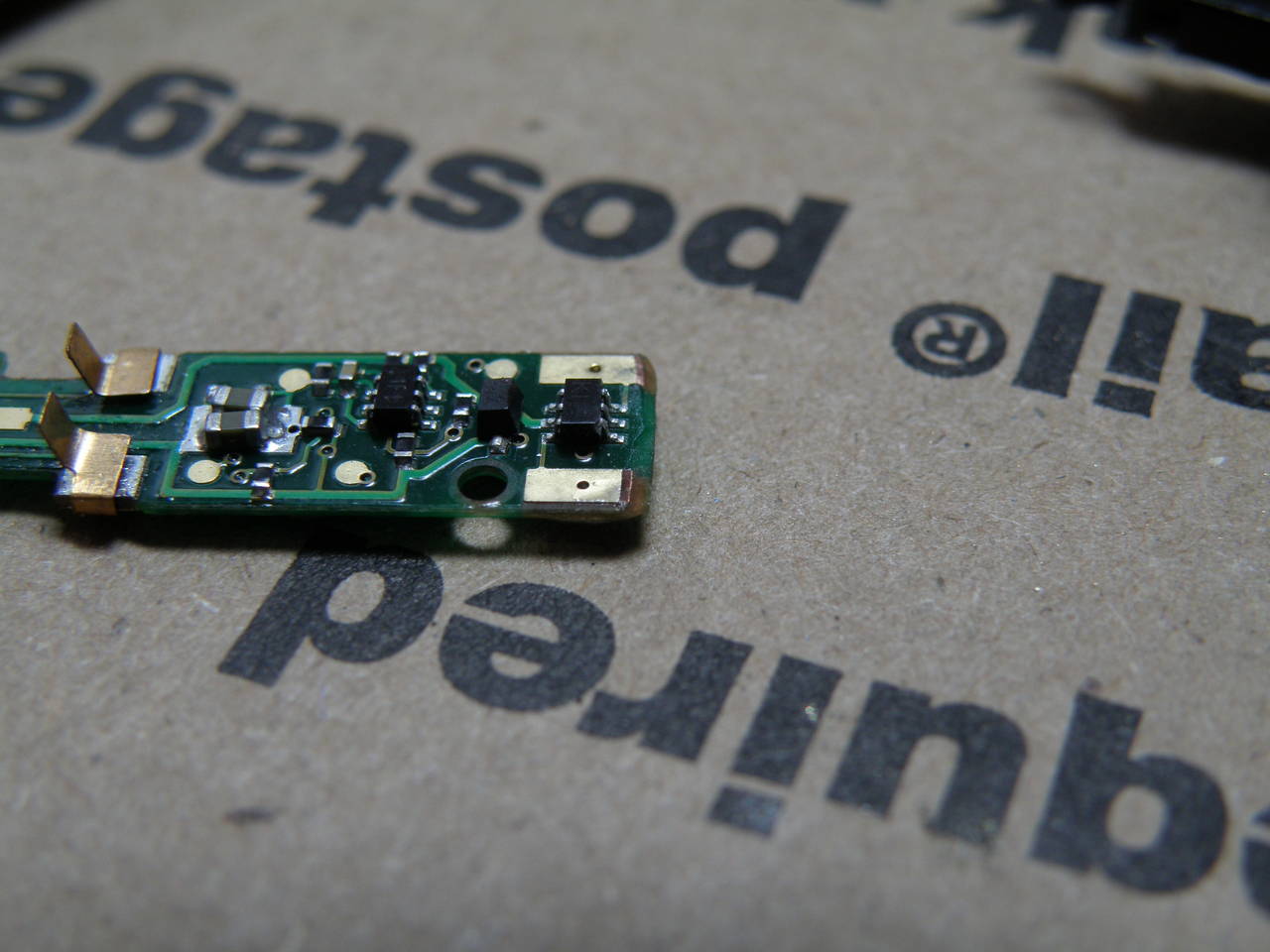

    The new Digitrax decoder made for the AZL GP-30/38-2 does not fit the frame because of the slight curve up of the frame notch in the front. I carefully put a slight bevel on the bottom edge of the circuit board to match the curve up of the frame.

    http://www.trainboard.com/railimages/data/506/P9151679.JPG

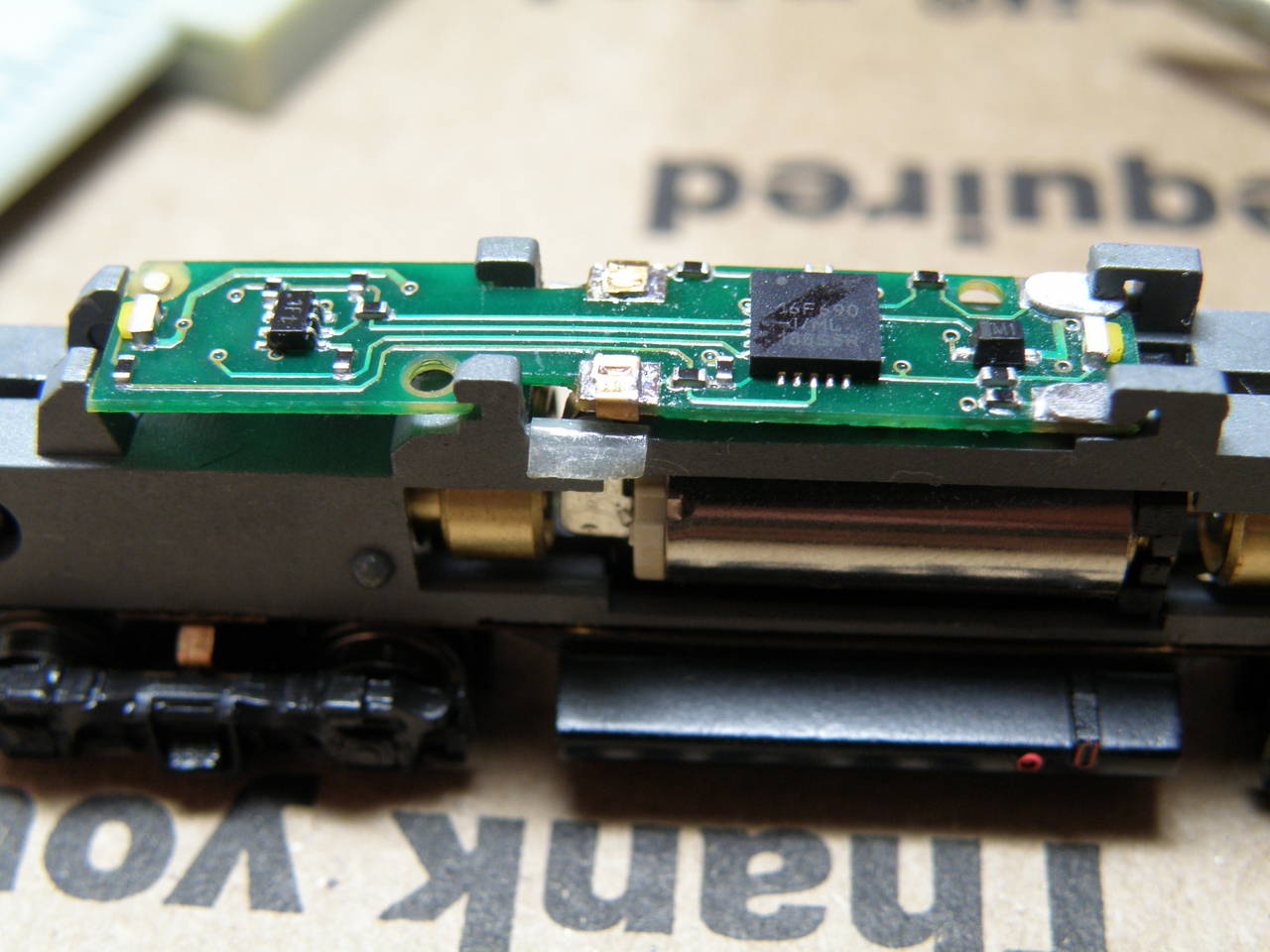

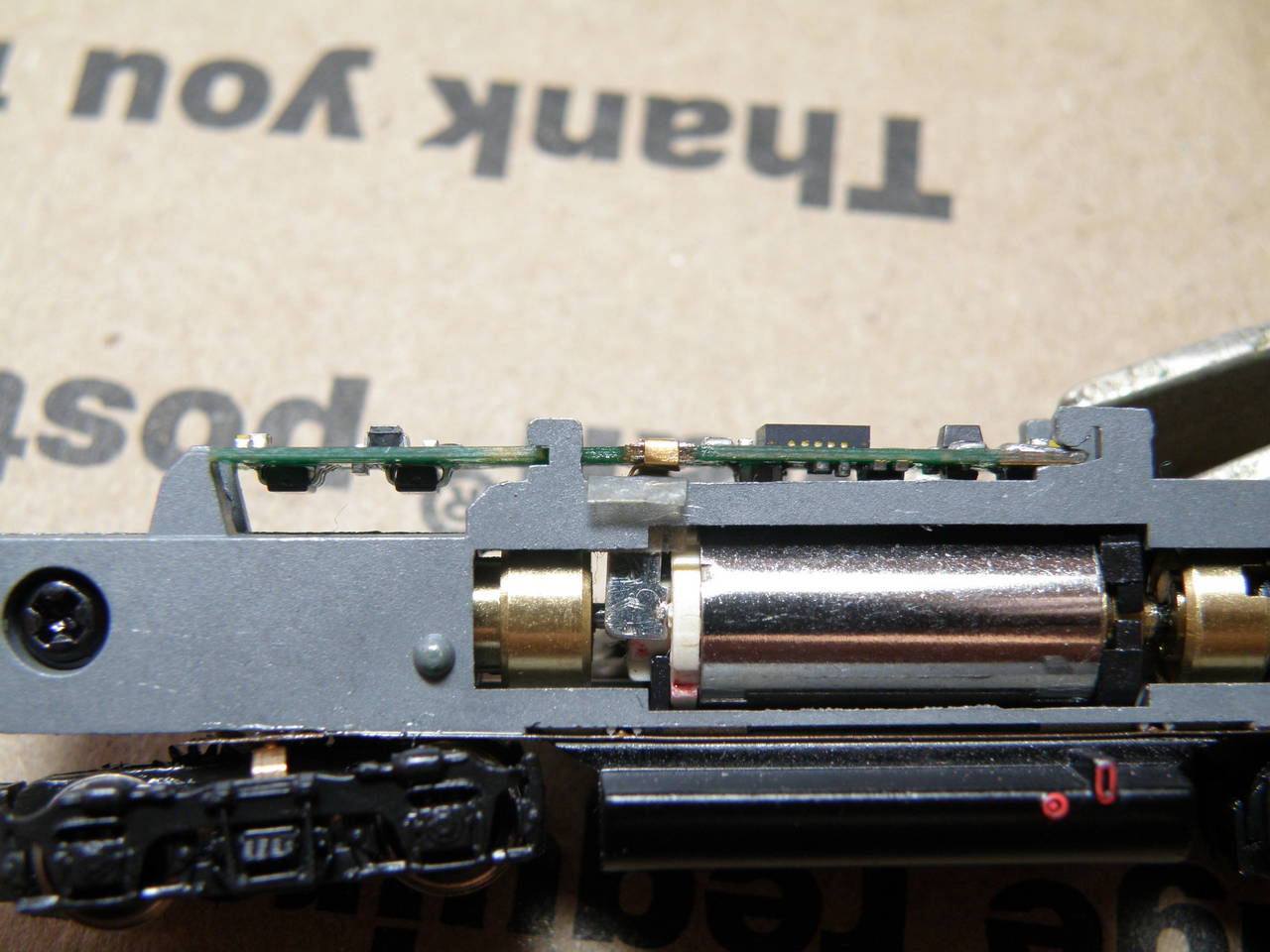

    Then the board can go in far enough to fit tightly and the back to rest against the frame like it was supposed to do.

    http://www.trainboard.com/railimages/data/506/P9151680.JPG

    http://www.trainboard.com/railimages/data/506/P9151681.JPG

    Works great!

  3. rray

    rray Staff Member

    8,277
    9,277
    133

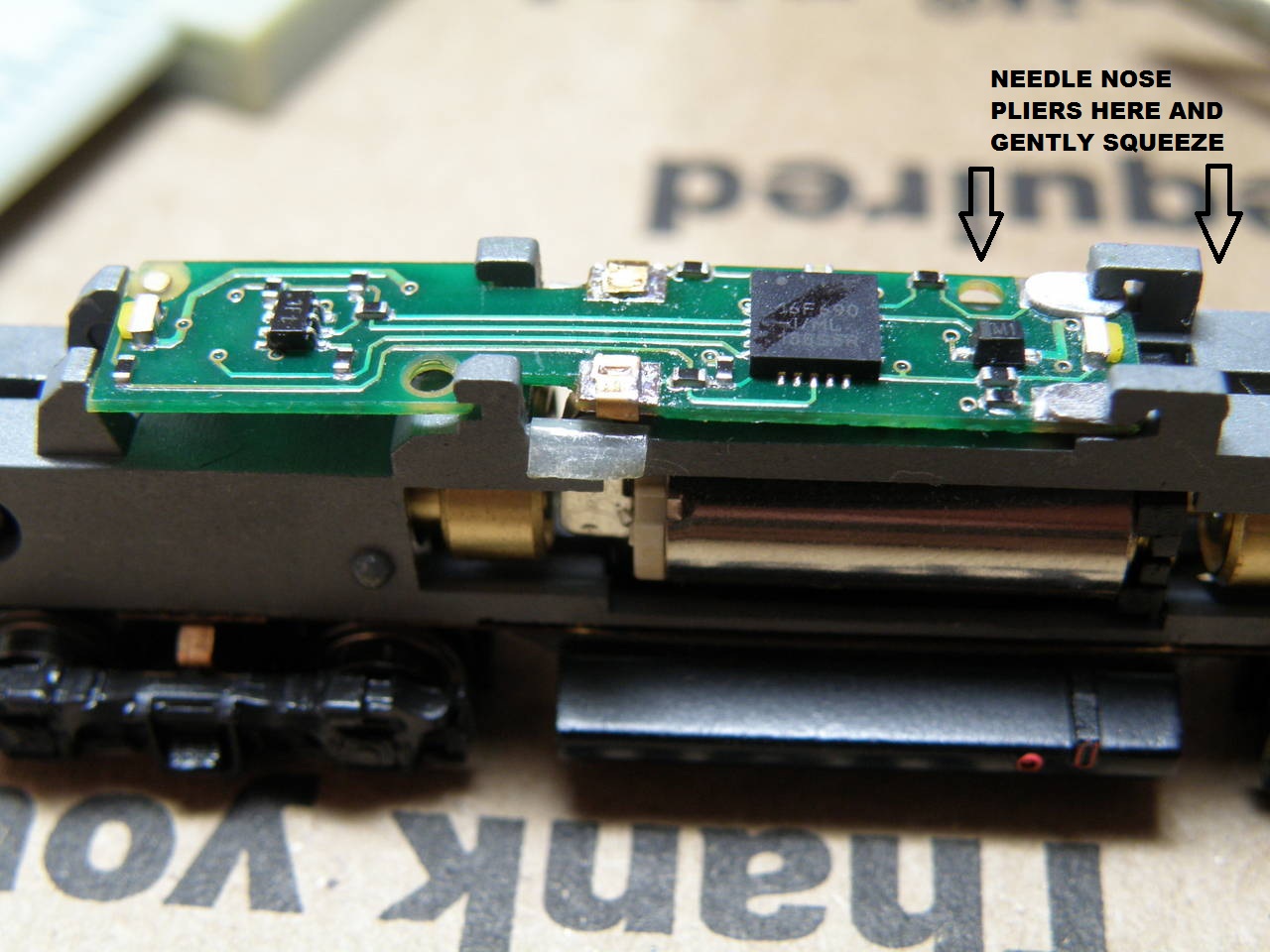

    If you have tiny needle nose pliers, there is a hole in the board and you just use the standoff post and hole in the board to squeeze the decoder into the front frame post clips, and the back side of the board will snap into place, held by the rear standoff posts. There is a hole in the board for decoder removal too, where you just lift the rear of the board over the rear standoff posts and squeeze the board back out of the front frame post clips.

    I can't post pics because I left my loco at the train show.... wait! I'll use your photo:
    [​IMG]

  4. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33
    Re-painted a undecorated unit in NdeM colours for Carlos Cardenas
    [​IMG]

  5. JoeS

    JoeS TrainBoard Member

    3,191
    1,211
    64
    Sweet paint job. Not weathered this time? I am used to seeing that touch.

  6. ddechamp71

    ddechamp71 TrainBoard Member

    2,153
    653
    46
    Wonderful as usual. Does Carlos Cardenas have a mex prototype model railroad?

    Dom

  7. minzemaennchen

    minzemaennchen TrainBoard Member

    1,491
    443
    33
    Another NdeM GP38-2 for Carlos
    [​IMG]

  8. shamoo737

    shamoo737 Staff Member TrainBoard Supporter

    4,596
    550
    72
    Carlos is a lucky guy.
