Bridges - show yours

dieselfan1 Sep 24, 2009

  1. BillMock

    BillMock TrainBoard Member

    161
    51
    18
    What a great collection of bridge designs and beautiful workmanship! Fantastic!
    With all the beautiful scratch built bridges displayed, I feel silly showing the small bridge on my layout, but here it is.
    [​IMG]

    My hat is off to all the bridge builders out there. :thumbs_up:
    Bill Mock


    Attached Files:

  2. Tracy McKibben

    Tracy McKibben TrainBoard Member

    1,181
    86
    24
    With workmanship like that, you have nothing to feel silly about. That looks great!

  3. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    364
    149
    Prototype Bridge Eighteen Ties Long

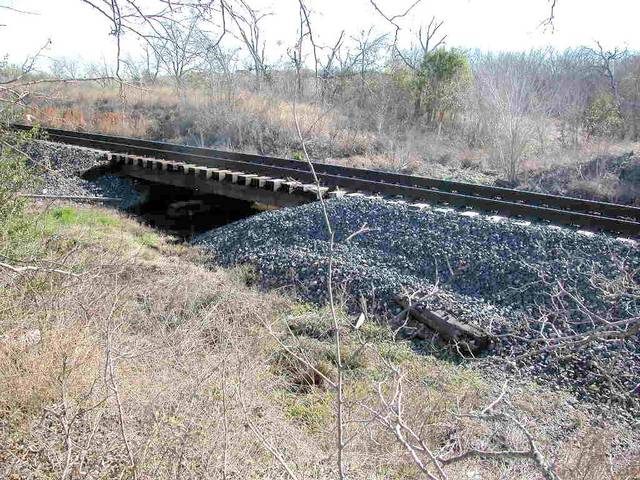

    This is a prototype bridge only eighteen ties long. That is no more than 30 feet in length. It has a small bent (support) in the center and it is no more that four feet high. This is on The old Espee mainline of the Sunset route. You can see the concrete ties outside of the bridge span. I am sure there is drainage through here, but I don't know why they didn't use a culvert. Probably more expensive to make a culvert than this small bridge.
    [​IMG]

  4. Stickboy

    Stickboy TrainBoard Member

    242
    0
    13
    Here's a shot of my little OO9 (HOn30) stone arch bridge, sold this layout last week prior to moving house...

    Hand carved/cast

    [​IMG]

    Cheers

    Phil

  5. Train Kid

    Train Kid TrainBoard Member

    798
    3
    19
    Awesome Phil. Very nice job. So real looking.

  6. dieselfan1

    dieselfan1 Guest

    0
    0
    0
    Nice thread to dig up

    I got one.


    Attached Files:

  7. G&G Railway

    G&G Railway TrainBoard Member

    409
    0
    11
    Nice work on the bridges everyone.

  8. mtaylor

    mtaylor Staff Member TrainBoard Supporter

    2,766
    139
    49
    Outstanding scenes Mark, this is what sparked my email asking about your Kato track detailing technique. As I stated, I am taking another look at my plan to use code 83 flex & sectional track compared to using Kato Unitrack. If I decicde that I want to be able to control all of my turnouts via DCC (computer interface, throttle, or toggle switch combo) the advantage appears to lie with Kato track with their built in switch machines. Code 83 track wins in overall appearance and is certainly less expensive. However, when adding the cost of a tortoise swithc macine, the turnout and labor involved.....I think the cost advantage of code 83 turnouts lessesons.

    Sorry to sidetrack this thread as it is about the awesome display of brdiges on everyone's layout. This is a really enjoyable thread and really gets the creative juices flowing.

  9. Torsja

    Torsja TrainBoard Member

    598
    30
    19
    Some Z-Scale [1:220] bridges I made.

    [​IMG]

    [​IMG]

    [​IMG]

  10. Grey One

    Grey One TrainBoard Supporter

    8,507
    1,746
    122
    The intent is to build this from 1/2" foam:
    [​IMG]
    It is not based on anything.

  11. GeorgeV

    GeorgeV TrainBoard Member

    177
    63
    18

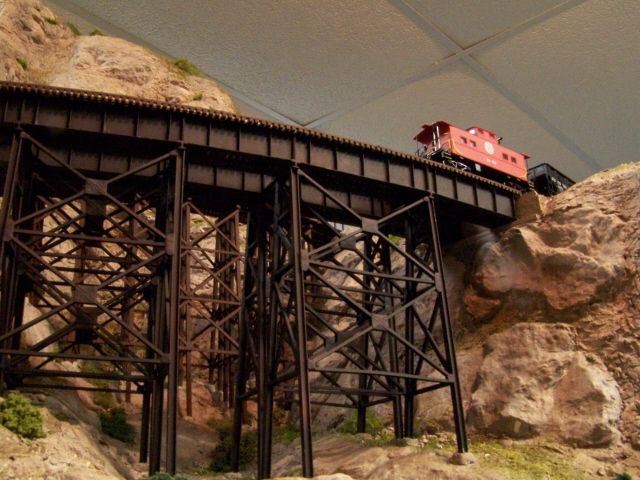

    This is a long thread but near as I can tell, I didn't post these. These are scratchbuilt, the steel trestle from styrene sheets, strips and shapes, the wood trestle from N'eastern Scale lumber.
    [​IMG]

    [​IMG]

    And one of the wood trestle before the steel one went in. These last two shots were days with a heavy overcast solid ceiling tile.. ..
    [​IMG]
    George V.

    Last edited by a moderator: Mar 18, 2010
  12. Train Kid

    Train Kid TrainBoard Member

    798
    3
    19
    George you get a Gold Star.

    Sweet bridges.

  13. BedfordRob

    BedfordRob TrainBoard Supporter

    211
    3
    14
    Great thread, some wonderful bridges, a great source of inspiration and ideas. I've got three Kato girder bridges in place temporarily but have been considering replacing them all with scratch built ones when I get time,another bookmarked thread from Trainboard!:thumbs_up:

  14. dieselfan1

    dieselfan1 Guest

    0
    0
    0
    Anyone got anything new?

  15. jhn_plsn

    jhn_plsn TrainBoard Supporter

    2,340
    889
    46
    I have been working on a freemoN module.


    Attached Files:

  16. mikelhh

    mikelhh TrainBoard Member

    1,007
    230
    23
    Some spectacular bridges here!
    Mine's more low key
    Made with pine blocks at either end,with homemade plastic girders inserted into slots.
    Concrete was made with modelling clay.


    [​IMG]

    Mike

  17. Tracy McKibben

    Tracy McKibben TrainBoard Member

    1,181
    86
    24
    And yet, jaw-dropping....

  18. Candy_Streeter

    Candy_Streeter TrainBoard Member

    2,288
    4,189
    64
    That looks sooooooooooooooooo real!!!! How did ya get such realistic water !!??!!

  19. mikelhh

    mikelhh TrainBoard Member

    1,007
    230
    23
    Thanks Tracy and Candy.
    The water is two-part high gloss epoxy resin, poured in two layers, 24 hours apart. I stood over the second layer like an expectant parent for about 90 minutes while it set, working in ripples with a sharpened bamboo skewer. They tend to melt away again, so you have to stick at it.

    Mike

  20. COverton

    COverton TrainBoard Member

    1,926
    146
    34
    Well, I feel like an impostor After Mike's stunning work. But I wanted to show my trestle, depicted back on page one at a very oblique angle, and largely hidden, in another recent image.

    [​IMG]


Share This Page
