Crooked Mile On30 Shelf Layout

man7sell Dec 29, 2018

Tags:
  1. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Moved into a small 1889 house and now have a limited area to have a layout. In my office (Shared with the wife) I have one wall which also doubles as my closet and drawers. So the shelf ontop is only 20" deep except for a slight flare to 24 at one end and 48" at the other. This limits the sort of locos I can run because of track curvature. Going to end up a point to point. Started working on the 48" wide part so I can still reach the farthest corner.

    North West logging theme at the 'fat' end.

    Some pics so far.

    [​IMG]

    Josta, RailMix, Shortround and 4 others like this.
  2. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Running through is the Crooked Mile River. Tracks will cross 3 times (2 so far). Here is the river buildup using real rock (granite sand from my own river)
    Added a fly fisherman that has one on.

    [​IMG]

    One of the first bridges.

    [​IMG]

    First of many epoxy pours.

    [​IMG]

    pabob, southernnscale, Josta and 7 others like this.
  3. HOexplorer

    HOexplorer TrainBoard Supporter

    2,268
    3,221
    70
    Very good. How about a track plan photo. Jim

  4. Kurt Moose

    Kurt Moose TrainBoard Member

    9,766
    14,020
    147
    Wow, excellent details!!
    Just like the real 1:1 logging roads in the Northwest here, they had to deal with extreme curvature thru the mountains and narrow shelfs in the canyons, so your doing great! Having a Shay, Climax, or a Willamet style loco is ideal for tight radius curves.(y)

    I had to build an N-scale empire in my closet cause of 3 kids, wife, dog, no room, etc, so I know how you feel!:D

  5. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    67,449
    22,396
    653
    Really nice! I'll second the track plan request. :)

  6. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Well the rail plan is a bit fluid but here's the 'plan' so far.

    [​IMG]

    Josta, HOexplorer and BoxcabE50 like this.
  7. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Pour number 4 has brought the river up to a nice depth. Once fully set it will be time for some water effects. Some dry white brushing was done after pour 2 and now shows up very softly beneath the surface.

    [​IMG]

    For layout position of the fisherman reference:

    [​IMG]

    Josta, Kurt Moose and BoxcabE50 like this.
  8. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Water effects added using Mod Podge and 'dry' white paint brush.

    [​IMG]

  9. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Upstream before adding a fish climbing the rapid.

    [​IMG]

  10. man7sell

    man7sell TrainBoard Member

    112
    208
    15

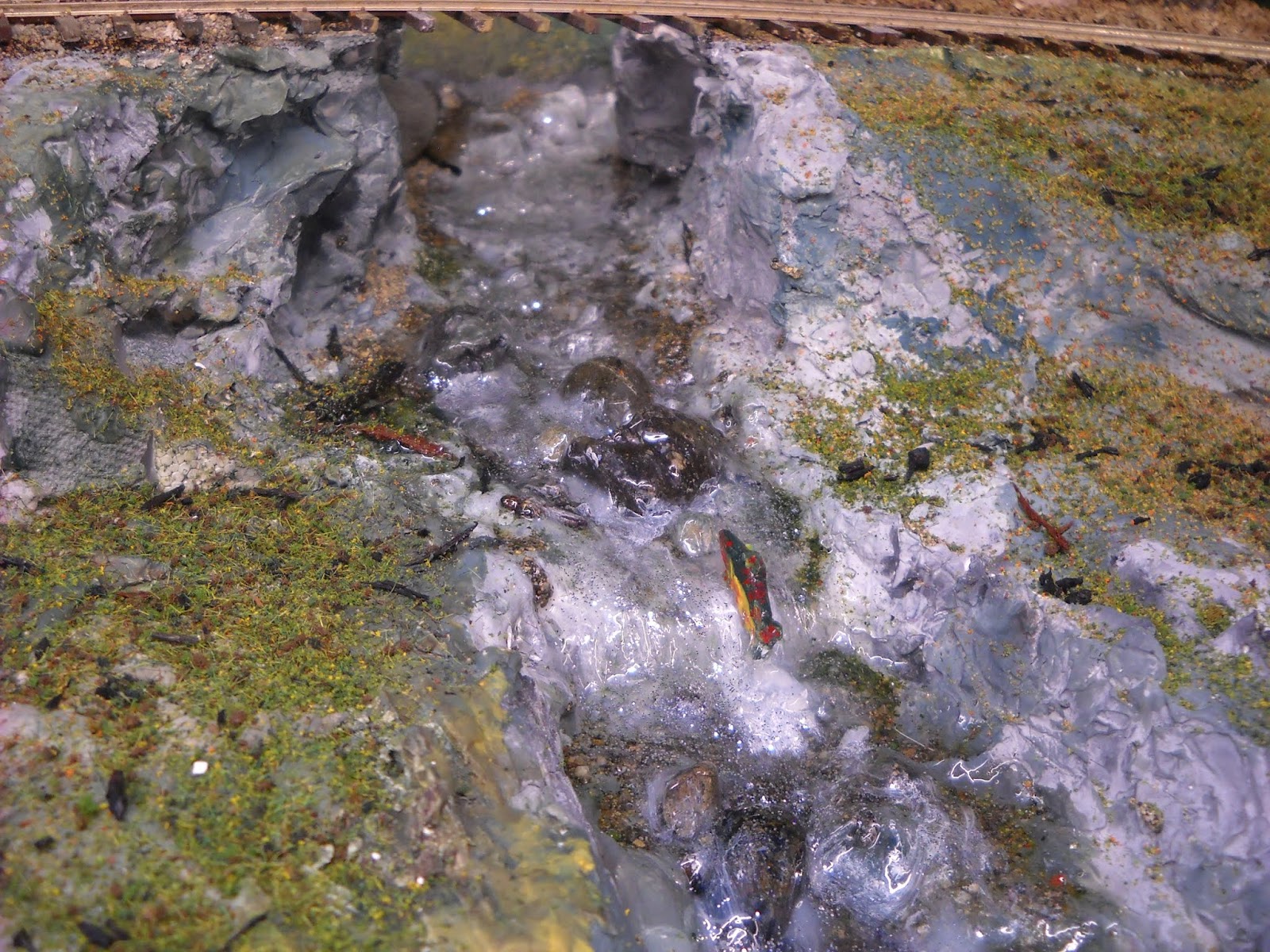

    Fish added climbing the small rapid.
    [​IMG]

  11. JimJ

    JimJ Staff Member

    1,572
    2,260
    50
    I love it.

  12. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Bridge under construction.

    [​IMG]

    pabob, Josta, RailMix and 3 others like this.
  13. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    New Porter joins the family.

    [​IMG]

    pabob, southernnscale, Josta and 2 others like this.
  14. Shortround

    Shortround TrainBoard Member

    4,247
    4,779
    93
    Very nice. Thanks for sharing.

  15. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Added proposed that will be mostly low trestle.

    [​IMG]

    Josta likes this.
  16. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Before you through your Christmas garlin away..... Trees. [​IMG]

    pabob, Josta, Chops and 1 other person like this.
  17. Chops

    Chops TrainBoard Member

    506
    490
    17
    Man-o-live, that is just brilliant, through and through. I'll be watching this thread. Less is more, often as not, and you have achieved it.
    If, perchance, you can ever shoot some video, that would be a fun watch.

  18. RailMix

    RailMix TrainBoard Member

    1,519
    3,807
    60
    In this case, less is definitely enough! Superb scenery and a great backwoods feel. The Climax and those little Porters look right at home there. Very nice!

  19. man7sell

    man7sell TrainBoard Member

    112
    208
    15
    Thanks Tom

  20. traingeekboy

    traingeekboy TrainBoard Member

    5,677
    580
    82
    Cool. The minimal trackage is always a bonus. Your scenes are looking good too.
