Hey, it's a start!

Chris333 Mar 26, 2006

  1. FriscoCharlie

    FriscoCharlie Staff Member TrainBoard Supporter

    11,118
    256
    135
    Looks great Chris. Keep posting pictures as you go. [​IMG]

    Charlie

  2. Powersteamguy1790

    Powersteamguy1790 Permanently dispatched

    Chris:

    Thanks for posting the trackplan.


    Stay cool and run steam..... [​IMG] :cool: :cool:

  3. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46
    Well like Bob said, not everyone has MR's from 1985 that and for inspirational purposes only ;)
    [​IMG]

    All the buildings are Marklin solid resin. Track was also Marklin. Pretty cool layout, especially when you factor it was built back in '85.

    Last edited by a moderator: Aug 9, 2006
  4. Powersteamguy1790

    Powersteamguy1790 Permanently dispatched

    Chris:

    That is a beautiful layout considering the timeframe.

    You'll do a great job on it in 2006.

    Have fun... [​IMG]

    Stay cool and run steam..... [​IMG] :cool: :cool:

  5. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46
    Got a start on track. Total of 6 feet now done. Here are some shots of the second 3 ft [​IMG]
    [​IMG]

    Code 40 rail, the PC ties are 1" apart and will be filled in with 9 wood ties between them.

    I got to run a train back forth 6' for the first time [​IMG]

    Last edited by a moderator: Aug 9, 2006
  6. JoeS

    JoeS TrainBoard Member

    2,790
    430
    49
    I really like that layout picture from the 85 model railroader. The colors look right. That has always been one of the things about model railroads, the colors sometimes look too clean. That really looks right.
    Speaking of color Chris, what is the base color you are using on your layout and roadbed? Looks great so far!

  7. bambuko

    bambuko TrainBoard Member

    229
    0
    15
    Chris, are you doing any breaks in the rail to allow for thermal expansion? or is it in 6ft pieces?
    rgrds Chris

  8. rray

    rray Staff Member

    7,289
    3,987
    123
    I would recommend lots of expansion joints too.

    I ended up ripping up all my handlaid track because I neglected expansion joints, and took my modules to a garden party, where the rails got so hot you could not touch them for more than a second.

    I read an article about an N Scale code 40 layout several years ago, where they guy cut staggered expansion joints every 9 or 10 inches. (I can't remember the exact number)

    -Robert

  9. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46
    I'll slide in another PC tie next to one that already there, solder it and cut the rail. I just got my Zona saw in the mail yesterday. Probably put gaps every foot or so.

    The color is just cheap craft store paint, about 3 different colors. Then I misted on water and spread it around with a brush. You really want ever see this color when it's finished, but it's better to look at for now.

  10. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    20,023
    15,138
    253
    Handlaid? Wow, you have my respect.. Looks good!!
    I'm wussin' out and using flextrack! [​IMG]

  11. rray

    rray Staff Member

    7,289
    3,987
    123
    Hemi, handlaying track is very easy, and almost as fast as laying flextrack. The hardest part is handlaying turnouts. Now that's where you can end up having fits!

    -Robert [​IMG]

  12. SmolderZ

    SmolderZ TrainBoard Member

    166
    21
    20
    Is handlaying track that easy??? :eek:

    It's hard to believe! Chris, your work looks AWESOME so far! [​IMG]

    Could I see a tutorial on this? The best would be a video-tutorial. I seen one like these about a fasttrack switch. O boy, he made it look easy to handlay a turnout [​IMG]

  13. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46
    Well I don't know if I would call it easy, but not overly hard.

    About doing a tutorial, well I could just point you to where I learned, Robert:
    http://raybob.boche.net/projects/page921.htm

    Now as far as turnouts, I'll get back to you on that one when I know myself.

    I have handlayed track in HO/On30 using spikes. And I have made HOn30 turnouts by taking N scale turnouts apart and soldering the pieces to PC ties. I haven't done any in N scale, but still it isn't like this if my first ever, just first in Z scale.

    I was ready to use MT c 55 on this layout, then I learned the flex track is only 12" long and the turnouts come with the ballast molded in. To me that is like 1 step forward and 2 back. So handlay it is!

    [ March 31, 2006, 03:38 PM: Message edited by: Chris333 ]

  14. SmolderZ

    SmolderZ TrainBoard Member

    166
    21
    20
    I totally forgot about Roberts way of handlaying track, that does make life easier! To bad I'm allready using MT flextrack, I don't want to mix it up with handlaid track. Except for the turnouts ;)

  15. Powersteamguy1790

    Powersteamguy1790 Permanently dispatched

    Chris:

    The track is looking great. What turnouts are you going to use?

    Stay cool and run steam...... [​IMG] :cool: :cool:

  16. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46

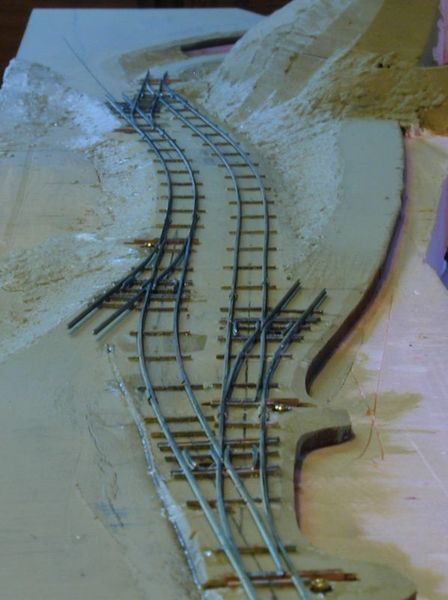

    Turnout's are the same brand as the flex ;)

    [​IMG]
    Thanks to Robert and Don for the use of Fast Track jigs of course :cool:

    They are just laying there now (just built them last night) and will look much better mounted with ties and painted up.

    Last edited by a moderator: Aug 9, 2006
  17. HemiAdda2d

    HemiAdda2d Staff Member TrainBoard Supporter

    20,023
    15,138
    253
    Awesome! Looks really good!!!
    I can just imagine the tolerances must be really tight for N, much less Z....

  18. chris mears

    chris mears TrainBoard Member

    42
    0
    17
    Chris, I've been meaning to log in earlier and add my enthusiasm to see this project as it progresses.

    I remember first seeing that John Armstrong layout in MR back in the early eighties (in the pre-Microtrains days). That was my first exposure to Z, and interest from that point was cemented at the publication of that very magazine with the project layout you are now building.

    I am having so much fun watching as your layout progresses, and I am looking forward to starting something of my own soon.

    With regard to the turnouts, any thoughts having now handlaid some in Z? I've built numerous 9mm gauge turnouts and look forward to the challenge in Z. Yours look very sharp.

    Anyway, I should be working and it is to that that I return.

    Chris

  19. Chris333

    Chris333 TrainBoard Supporter

    2,522
    176
    46
    Since I only need 5 turnouts I've been taking my time on them. I file all the solder on the ties nice and flat so hopefully they will blend it better with the wood ties.

    Also I clean all the solder out of the rails web. When I was doing the track it was easy to get the iron just the right way that the solder didn't creep up at all, but with the Fast tracks jig you kind of have to just stick the iron in there to get the job done and clean it up later. I have a very small tip for my iron, but it doesn't seem to heat up enough even with the dial turned to 800 degrees! So I have been using a "screwdriver" tip (like a flathead)

    To cut the slots in the PC ties I use a xacto like blade, but with fine saw teeth on it, been working great.

    I file and sand the top of each copper tie and the bottom of the rail to make sure the joints are good (probably overkill)

    Code 40 rail is very flexible so I did solid points instead of hinged.

    I use a Zona saw to cut the rails for isolating the frog.

    And before I started anything I watch the excellent video at the Fast Tracks website.

  20. SmolderZ

    SmolderZ TrainBoard Member

    166
    21
    20
    Beautiful work! What number of turnouts are these btw?

    I'm still debating what to use on my own layout. #8 on the main lines, #6 in the yards? I don't know really...
