MODELING Weekend Photo Fun August 10, 2012

r_i_straw Aug 10, 2012

  1. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,549
    24,954
    243

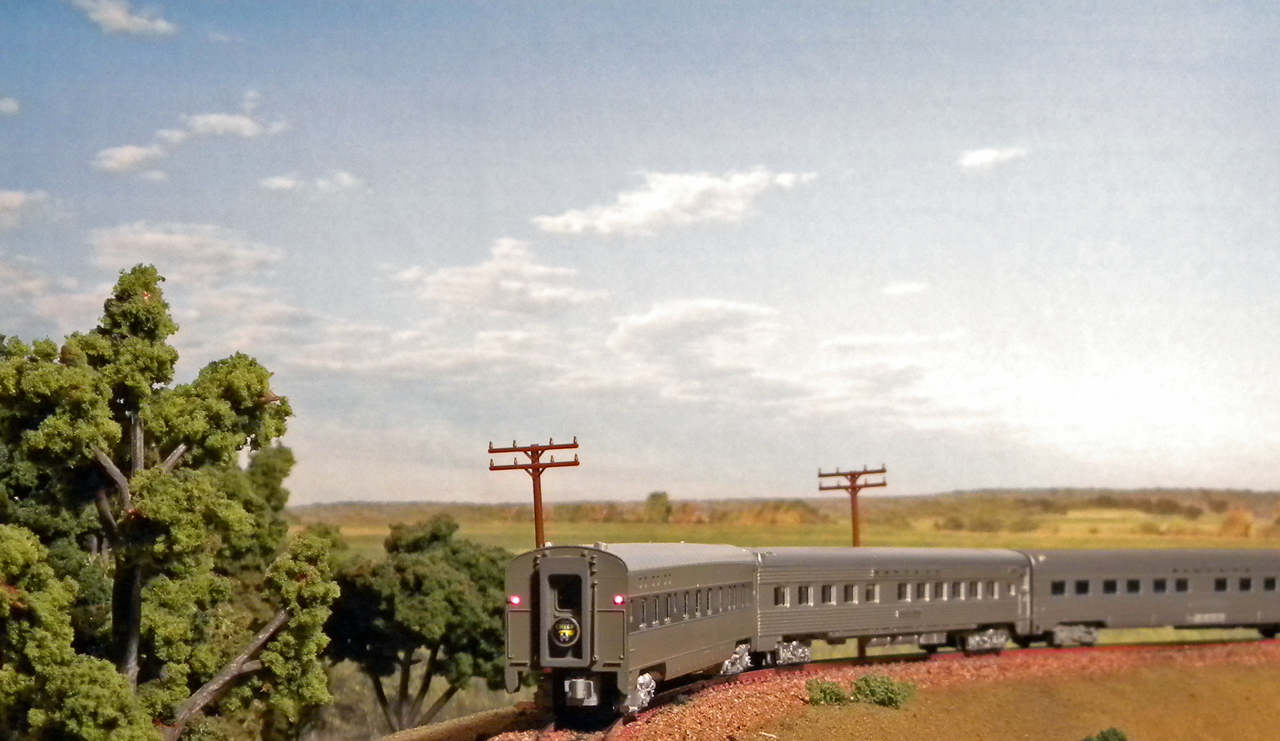

    I am trying to catch up on a few projects promised for friends. Here is an ATSF Valley sleeper set up for end of train use with LED marker lights and a Tomar drum head added.
    [​IMG]

  2. dti406

    dti406 TrainBoard Member

    920
    5,381
    49
    Here are a couple of cars that I finished in the last week.

    [​IMG]

    [​IMG]

    This is a Details West FGE RBL, painted the roof silver and reeefer yellow sides and ends. Lettered with two different sets of Mioroscale Decals, one for FGE cars and the other for the Gothic Data.

    [​IMG]

    This is a Walthers 10,000 Gallon Tank car, painted with Scalecoat II Aluminum and Black Paint, lettered with Champ Decals.

    Thanks for looking!

    Rick J

  3. SecretWeapon

    SecretWeapon TrainBoard Member

    5,006
    2,009
    90
  4. GP30

    GP30 TrainBoard Member

    3,268
    877
    61
    I painted white hand rail ends and the sill of #1803. Also added numbers, still need to figure out how to go about making the G&OM shield for cabs and ends and adding number boards.
    AFTER:
    [​IMG]

    BEFORE:
    [​IMG]

    Unit started out as part of a 5 unit purchase from the bay. Less than $5 for the unit. This one was an old Athearn "Hi-F" rubber band drive locomotive. I swapped out the old frame for a newer dummy frame with up-to-date Blomberg B trucks. I cleaned the shell and added a N&W style nose bell, MU stands, MU Hoses, Cut levers, firecracker antenna, G&OM standard Leslie Super Typhon RS5TRF air horn and painted the unit a flat black. Incomplete, another 8 units awaiting same process.

  5. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,808
    145
    37
    Numberboards done on the N scale U30CG project.

    [​IMG]

    Now weathering is all that's left :).

  6. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,549
    24,954
    243
    Ah, John. I hate to say thins but the hand rails on the U28CG really needs the same hand rail treatment as the U30CGs.

  7. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,808
    145
    37
    Correct, Russ :) It's like Randgust said, once one sees wire handrails, the plastic ones start sticking out.....

  8. jeffrey-wimberly

    jeffrey-wimberly TrainBoard Member

    1,049
    0
    23
    A recent project of mine was to build an F7B slug with a chopped roof. I used parts from an Athearn F7B and a Proto 1000 F3A.

    First, the parts from the P1K F3A:

    Motor, truck halves, side frames, wheels, flywheels, shafts, worms.

    Now the parts from the Athearn F7B:

    Body shell, worm housing clips, truck bottom clips, gears, frame.

    The trucks were assembled and placed in the frame, the shafts with worms were put in and the the worm housing clips snapped in place. A small piece of rubber was placed in the motor well to support the motor at the height needed for the shafts to be level between the flywheels and trucks. The motor was laid on it's side so it would stick up as little as possible. The shafts were inserted into the flywheels and the motors position adjusted so the shaft runs were equal then the motor was secured in place with hot glue. That's the mechanical part done. Two jumper wires were run between the trucks and a Digitrax DH123 decoder hardwired in for motor control. Making the body was a simple matter of cutting away a strip between the portholes and the roof line of an old Athearn Hi-F F7B shell then joining the cut down body and roof together. The portholes and most of the gaps between body and roof were filled with hot glue. Excess glue was cut away and everything was smoothed out. A layer of masking tape was applied to the sides of the body and painted flat black. The paint is acrylic and soaked through the tape insuring the tape adhered well to the body. The fans and exhaust stacks on the roof were cut away and the area sanded smooth then it too got the tape and paint treatment.

    [​IMG]

    [​IMG]

    Click here for a video of a test run.

    The unit runs very well and is extremely quiet. It can pull a dozen cars on it's own but since it's a 'slug' it'll only be used as added pulling power.

  9. WPZephyrFan

    WPZephyrFan TrainBoard Member

    2,396
    1,171
    52
    Saturday I received my newest Japanese tram (streetcar). It's a Modemo Tokyo Toden Type 9000 in N scale. You can see how tiny it is by the ruler I set up behind it. I haven't run it yet, but I'm hoping it runs pretty well:

    [​IMG]

  10. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,808
    145
    37
    Agreed. Here's the rear view of the U30CG's with their wire handrails.

    [​IMG]

    [​IMG]

    :)

  11. tgromek

    tgromek TrainBoard Member

    164
    7
    20
    I'm building this structure, using the Xyron Wishblade to aid in the cutting of the many windows. I also am substituting Grandt Line windows for lack of anything else closer to the prototype.

    [​IMG]

    Here is the prototype in it's current appearance

    [​IMG]

  12. mikelhh

    mikelhh TrainBoard Member

    1,007
    220
    23
    Excellent job so far

    Mike

  13. Mark Dance

    Mark Dance TrainBoard Supporter

    195
    466
    19
    I am in the process of installing Snowshed #1 in McRae Canyon.

    [​IMG]

    md

  14. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,036
    9,446
    652
    What is this building? Impressive, whatever it's purpose?

  15. tgromek

    tgromek TrainBoard Member

    164
    7
    20
    Today, it houses people, in 1982, it looked like this...

    http://johnhill_3009.rrpicturearchives.net/showPicture.aspx?id=1677704

    http://johnhill_3009.rrpicturearchives.net/showPicture.aspx?id=1677705

    http://johnhill_3009.rrpicturearchives.net/showPicture.aspx?id=1676655

    At one point, the side of the building said "Northern Rock Island Plow", so I assume it was a manufacturing facility, I really like the tuck under for the train tracks, which was the deciding factor to model it.

  16. jeffrey-wimberly

    jeffrey-wimberly TrainBoard Member

    1,049
    0
    23
  17. GP30

    GP30 TrainBoard Member

    3,268
    877
    61
    Wow, that snow scene is outstanding!

  18. atsf_arizona

    atsf_arizona TrainBoard Supporter

    1,808
    145
    37
    Got them weathered.

    [​IMG]

    [​IMG]

    I used this unusual 'helicopter' angle for these shots, because while this angle is unusual in real life rail-fanning,
    IMHO this angle is actually the common normal angle in viewing a N scale model. Hence, the roof weathering is
    disproportionately important in terms of giving a good impression.

    :)

    Now I can move to Sarasota, Florida in peace and pack my modeling tools.

  19. SecretWeapon

    SecretWeapon TrainBoard Member

    5,006
    2,009
    90
    Good job John!!

  20. r_i_straw

    r_i_straw Mostly N Scale Staff Member

    19,549
    24,954
    243
    Nice. Hope you get back into the swing of things after your move in short order. We need you to keep pushing the envelope so to speak.
