SW1500 Switcher Concor Kato Rivarossi SW1200: Quality and Wheel Sets

Discussion in 'N Scale' started by localdriver, Mar 31, 2010.

  1. localdriver

    localdriver TrainBoard Member


    4001Atchison Topeka & Santa Fe2418blue/yellow
    doese anyone know anything about this switcher.r they any good
  2. ArthurMuroff

    ArthurMuroff New Member

    I have two of those switchers. They work fairly well if you run wires between them; otherwise they stall on some frogs or trackwork that is slightly irregular. Art
  3. localdriver

    localdriver TrainBoard Member

    will the front one run by itself
  4. N&W

    N&W TrainBoard Member

    The cabs are wrong on the shells, and they may or may not run well depending on which mechanism is under the shell (these were originally made by Rivarossi for Atlas around 1970 or so, and later were sold by Concor with at least one of the mechanisms made by Kato).

    EMD Diesel "Cow & Calf"

  5. localdriver

    localdriver TrainBoard Member

    its the one by Atlas (Rivarossi)
  6. LOU D

    LOU D TrainBoard Member

    You sure it's the Rivarossi? Is the motor where the fuel tank is,a big round one? With the weight in the cab,it looks like a Kato/CC.The Rivarossi is pretty much poop,I've only seen one or two over the years that were even worth running.The Kato/CC isn't too bad,they're smooth,but start pretty fast...
  7. localdriver

    localdriver TrainBoard Member

    no just going by a pic and description
  8. daniel_leavitt2000

    daniel_leavitt2000 TrainBoard Member

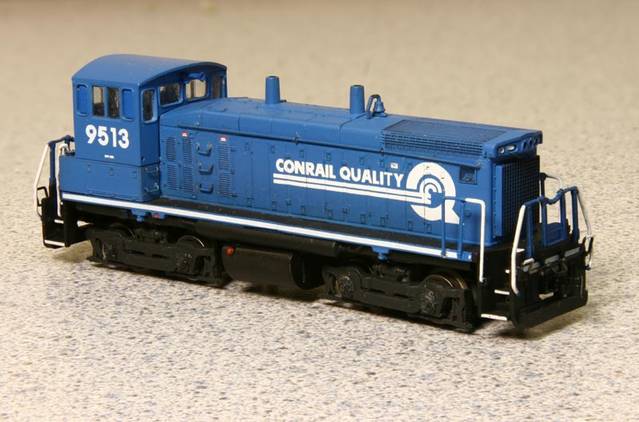

    Personally, I prefer the newer Atlas/Kato/tehachapi/leavitt SW1500.

  9. drawmada

    drawmada TrainBoard Member

    I have one of those by Con-Cor, and have to agree with Lou on the fast start! Takes mine quite a bit of voltage to start. But quiet, and pulls my cars ok
  10. FloridaBoy

    FloridaBoy TrainBoard Member

    The unit pictured and inquired about appears to be a Rivarossi SW1500 Cow and Calf with the Kato mechanism. The only tell is the solid zamac mechanism blocking the cab windows. On the Rivarossi unit the cab windows are a little more open.

    A post on the Atlas board described this model best. The Rivarossi mechanism was like a lady who changed her mind and personality every day. The Kato unit is more consistent and has more drawbar strength along with the usual Kato performance characteristics.

    Ken "Floridaboy" Willaman
  11. David Leonard

    David Leonard TrainBoard Member

    Just in case you didn't know, the RR/Atlas ConCor SW1500's are not accurate models. They are based on drawings of a proposed SW1500 (including the flat, angled cab roof) but the actual proto SW1500 was differently constructed. The model represents a fictitious prototype.
  12. u18b

    u18b TrainBoard Member TrainBoard Supporter

    It's really almost closer to a rebuilt Ill Central switcher.

    IC 1455

  13. Flash Blackman

    Flash Blackman Staff Staff Member TrainBoard Supporter

    Concor SW1500 Smaller Flanges

    Is it possible to get smaller flanges for these engines? I have the unpowered calf and would like a better appearance. Thanks.
  14. r_i_straw

    r_i_straw Administrator Staff Member TrainBoard Supporter

    Someone once told me that that indeed was the prototype for the model.
  15. r_i_straw

    r_i_straw Administrator Staff Member TrainBoard Supporter

    I just cut the existing flanges down by chucking the axle in my moto-tool and filing them down while they spin. I did the same on all my Arnold S2s also.
  16. Flash Blackman

    Flash Blackman Staff Staff Member TrainBoard Supporter

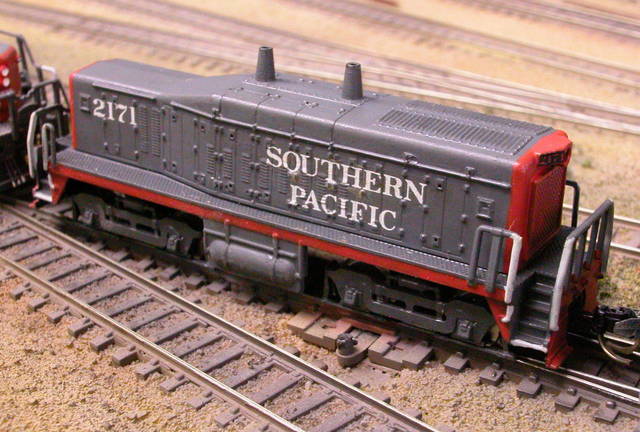

    I'll try it. Unpowered, so no big loss. Thanks.

    Actually, that looks more like an SW1200 or so.
  17. N&W

    N&W TrainBoard Member

    According to magazine reviews back when these came out it was based on pre-production drawings.

    The Atlas SD45 (Mehano) also was based on pre-production drawings which explains why the radiator flares only have two panels (instead of 3).

    At least that's what I remember. ;)

  18. randgust

    randgust TrainBoard Member

    I've had Atlas/Rivarossi, Con-Cor Rivarossi, Con-Cor Kato, Life-like and Kato SW/NW-whatevers. The Life-Like and Kato are head and shoulders above the predecessors, and if your buyer is mis-identifying it as a Life-Like, I'd just steer clear.

    If actual operations - slow speed and electrical pickup - are important to you - rather than the body shell and paint scheme, that's my opinion.
  19. crappie610

    crappie610 TrainBoard Member TrainBoard Supporter

    if you have the Kato drive it will run on Atlas code 55 .I have 3 and they all run with no problem.
  20. Flash Blackman

    Flash Blackman Staff Staff Member TrainBoard Supporter

    No worries! That was pretty easy. I reduced the flange diameter by .025 inches down to a .300 inch diameter flange. The flanges no longer strike my poor ballast technique in my yard. Cleaning and lubricating this unpowered SW1200/1500 also helped it roll a lot better. Thanks for the tip, Russell. :thumbs_up:

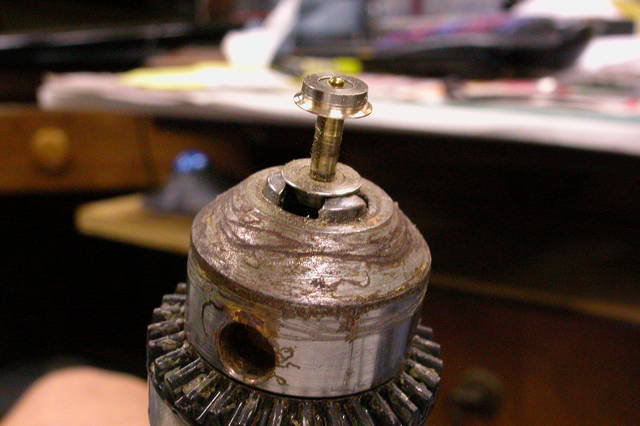

    I couldn't fit the 40 inch diameter wheel in my hand tool, so I just used a plain 3/8 inch electric drill.

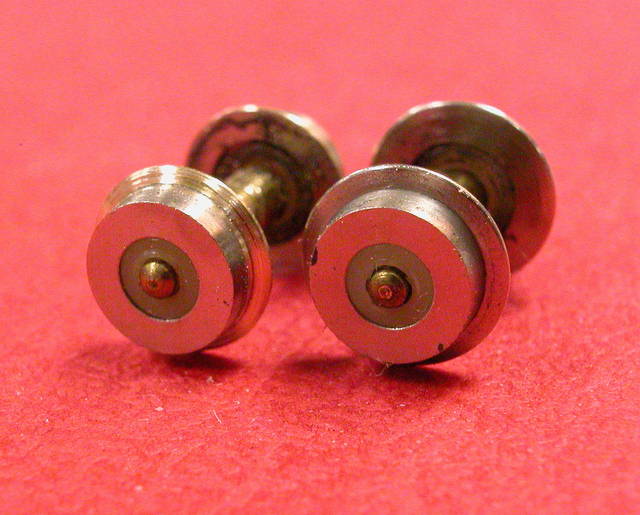

    Here are the wheel sets after turning them down. I used a triangular file and shaped the flanges to my best estimate. I was worried about picking points and frogs, but I don't seem to have any problem. I will say to measure often as you turn it down; you can't get it back. The did have a proper gauge.

    It diesn't seem like much, but it really improved operation.
