N scale "What's on your workbench?"

Mark Watson Oct 28, 2009

  1. HoboTim

    HoboTim TrainBoard Supporter

    1,565
    375
    38

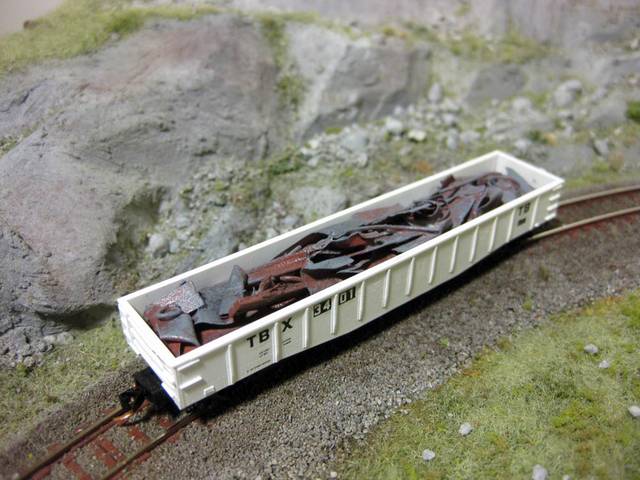

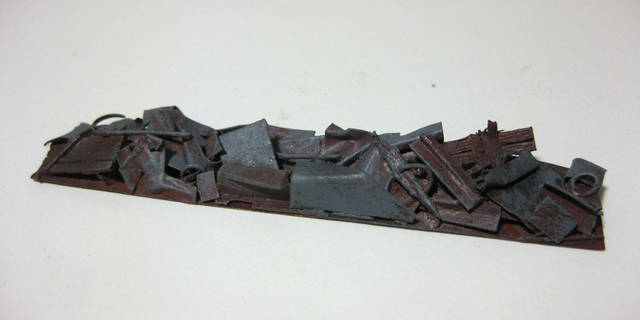

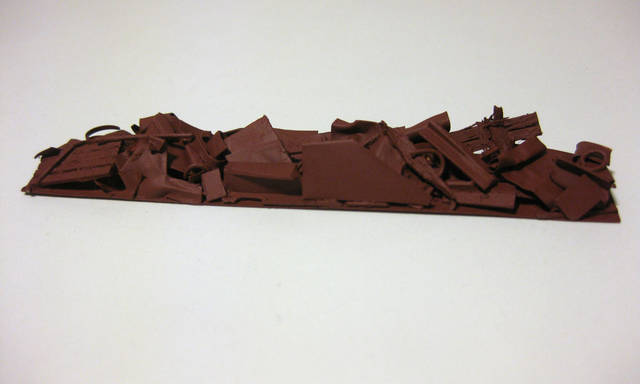

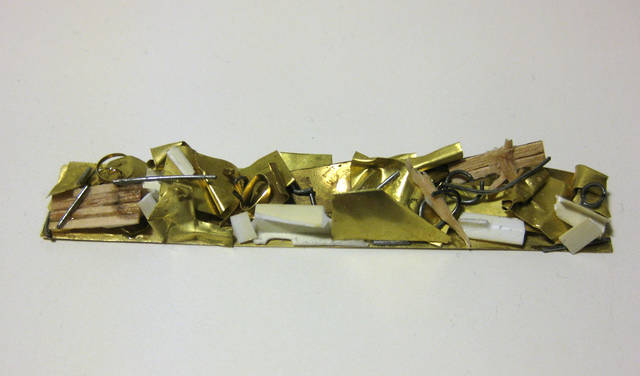

    I really like the end result you was able to achieve. I think I will also be making some of my own scrap loads. Thanks for the boost!

    Hobo Tim


  2. tphmike

    tphmike TrainBoard Member

    86
    50
    12
    Scratchbuilt warehouse. Still need to do touch up and fix some other areas.


    Attached Files:

    • 027.jpg
      File size:
      51 KB
      Views:
      39
  3. ArtinCA

    ArtinCA TrainBoard Member

    852
    76
    20
    What are you using for drives?

  4. Train Kid

    Train Kid TrainBoard Member

    798
    3
    19
    Nice job Mike. Looks very good.

  5. retsignalmtr

    retsignalmtr TrainBoard Member

    898
    2
    19
    If you look in the first photo you can see the chassis and box next to one of the cars. It is made by tomy tec. Found it on ebay with thanks to a member on nscale.org. $26.50 plus shipping from Japan. Plaza Japan is the name of the seller. The chassis is .060" narrower than the Bachmann car so after removing most of the floor I had to shim the inside of the car body. Now i'm looking for something to use for headlights.

  6. Mark Watson

    Mark Watson TrainBoard Member

    6,002
    1,274
    85

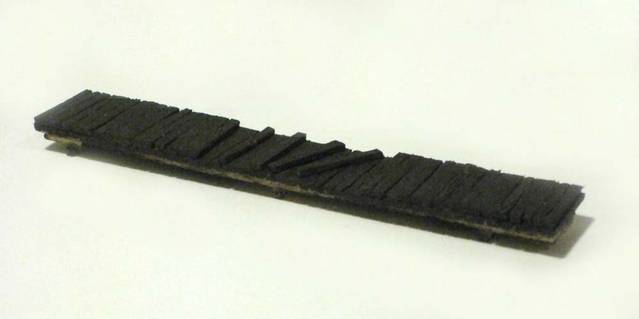

    Here's another 30 minute load. Toothpick Ties!!

    3 layers of full toothpicks glued lengthwise, then 1 layer of tie length toothpicks glued sideways with the partial top layer on top of that:
    [​IMG]

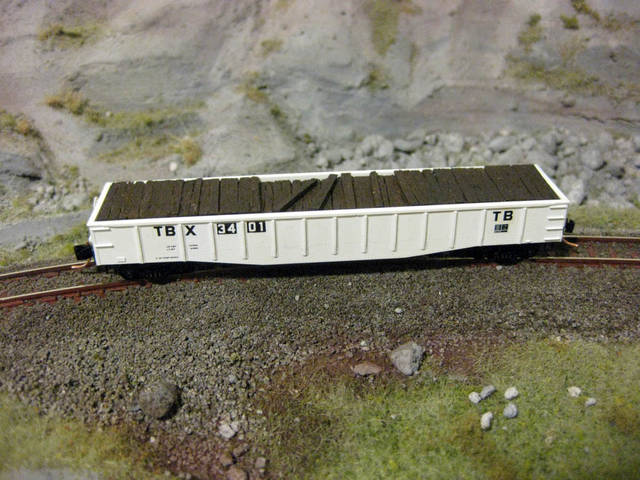

    And those 5 layers fit perfectly inside the Gon I have:
    [​IMG]

  7. christoph

    christoph TrainBoard Member

    1,119
    12
    31
    Mark,

    both loads are great. They might trigger some more load projects on various workbenches :)

  8. Mark Watson

    Mark Watson TrainBoard Member

    6,002
    1,274
    85
    Well if so, I hope we'll see those various workbenches showcased here! :D :D

  9. G&G Railway

    G&G Railway TrainBoard Member

    409
    0
    11
    I have been adding weights to the cheaper rolling stock I have.

  10. marty coil

    marty coil TrainBoard Supporter

    984
    406
    30

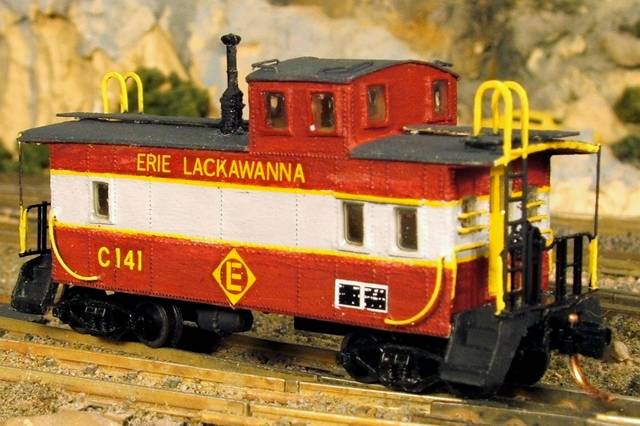

    Just finished this caboose. Made from a LL Center cupola caboose with an Atlas cupola that had to be widened a bit......
    [​IMG]

  11. Chaya

    Chaya TrainBoard Supporter

    1,095
    2
    23
    Really nice work, Mark. The loads are cheap and look realistic, and the weathering is perfect! An inspiration.

  12. BedfordRob

    BedfordRob TrainBoard Supporter

    211
    3
    14
    Removing pesky pins from couplings. Laying some new trackwork. Running in some of my newer locos.

  13. skipgear

    skipgear TrainBoard Member

    2,957
    190
    45
    It's too much of a mess to show right now and if you have seen my previous pictures, I'm not shy about a messy workbench.

    GS-4 in process of reinstalling a Tsunami after first one didn't make it past the 30 minute mark.

    Trix 2-10-0 that I need to build a tender for to finish.

    Just was given a box full of old Bachmann J parts that may get converted into a NW streamlined pacific and there was a trailing truck in there that may inspire me to get back to work on the EM-1.

    In the middle of all this, I have to finish remodeling and adding a closet done in a room for my wifes office in the next two weeks.

  14. G&G Railway

    G&G Railway TrainBoard Member

    409
    0
    11
    I added some decals and started to put a base coat of grimy black on the building. Then plan to add some dirt and rust.


    Attached Files:

  15. Train Kid

    Train Kid TrainBoard Member

    798
    3
    19
    WOW Gary...the building looks amazing. Nice job!

  16. ArtinCA

    ArtinCA TrainBoard Member

    852
    76
    20
    Building a big industry.. It's a loadout for refined minerals shipped in covered hoppers. The building itself is 40' wide by 60' long and 80' high. It swallows an entire Atlas Centerflow hopper.

    [​IMG]

    This shows it taped up in it's location. The actual plant is off the layout...Next shot is on my workbench last night..

    [​IMG]

    And this is the interior of the loader at track level. I just wanted something inside so I wasn't picky about how it'll look.

    [​IMG]

    I'll post more as I get it done on my blog..

  17. 71jeep

    71jeep TrainBoard Member

    17
    1
    10
    Here is a custom n6b cabin car I just finished up on to the next project.

    [​IMG]

    [​IMG][​IMG]

    marty coil likes this.
  18. rray

    rray Staff Member

    7,355
    4,214
    123
    Very Nice N6B! :D Awesome!

  19. Nick Lorusso

    Nick Lorusso TrainBoard Member

    1,751
    259
    35
    Went through my parts bin and decided to add some loads to some Red Caboose 42' flats. I'm not to sure about the NP Flat w/the lumber load I think it looks to toyish. What do you think.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  20. rray

    rray Staff Member

    7,355
    4,214
    123
    Nice Nick! I would dump the lumber load on the NP, and go with a Hay Bros load tied down with some Berkshire EZ Line. :D
