River Harbor Belt Line

Colonel Dec 1, 2013

  1. BoxcabE50

    BoxcabE50 HOn30 & N Scales Staff Member TrainBoard Supporter

    63,789
    11,308
    652
    Will you need to add a gusset or brace for those valance supports, to keep them from sagging?

  2. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117
    going to try a brace on each support if that doesnt work i will suspend from ceiling although would rather not attach to house. The valance will only be holding up some thin MDF and strip LED lighting

  3. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117

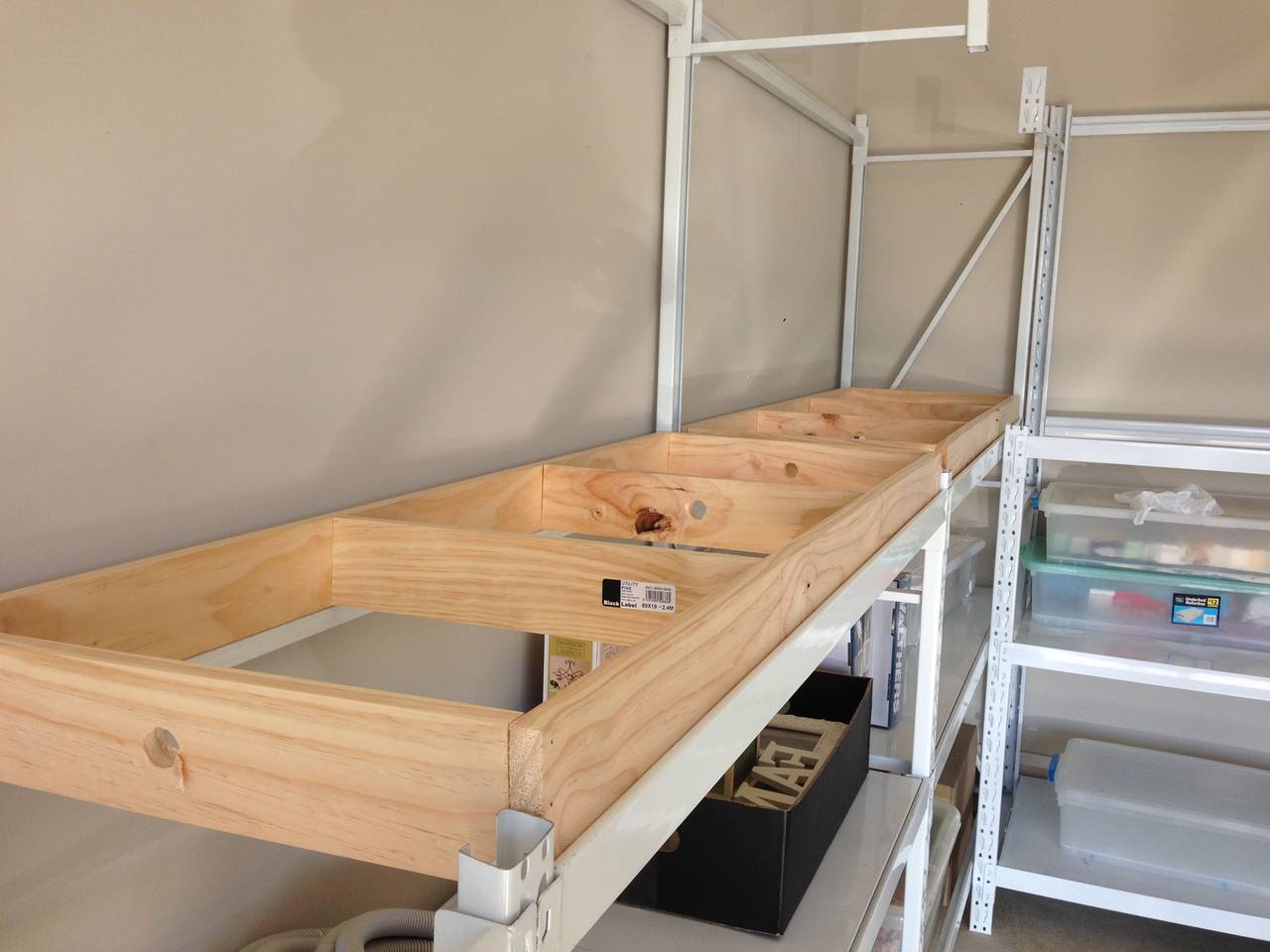

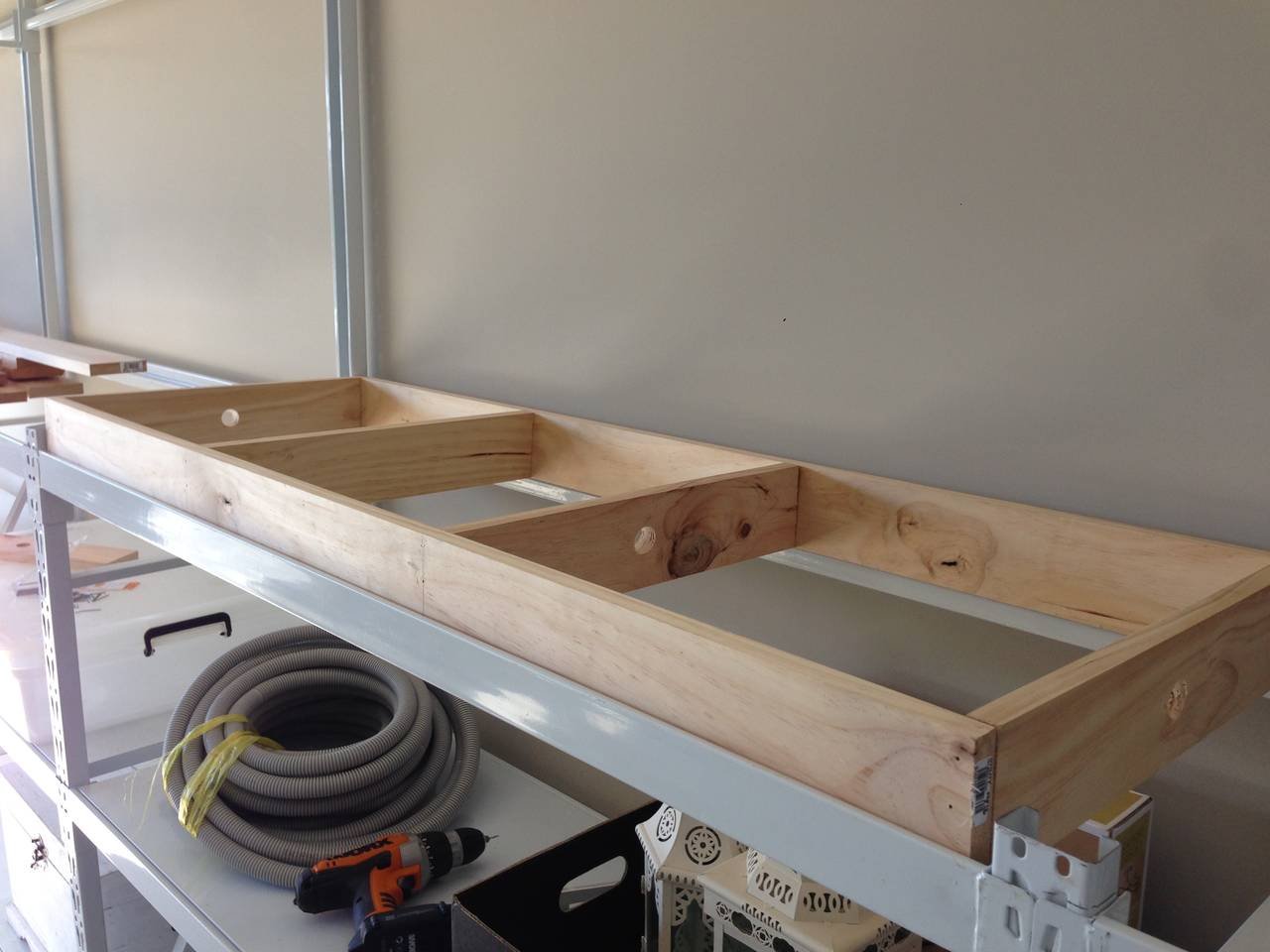

    Today I assembled the first two bench top frames from 6 required

    [​IMG]

    [​IMG]

    All going well will have all 6 completed tomorrow

  4. Alan

    Alan Staff Member TrainBoard Supporter

    10,795
    422
    127
    Wow! Very exciting. :) They look very substantial!

    Sent from my Nexus 7 using Tapatalk

  5. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117

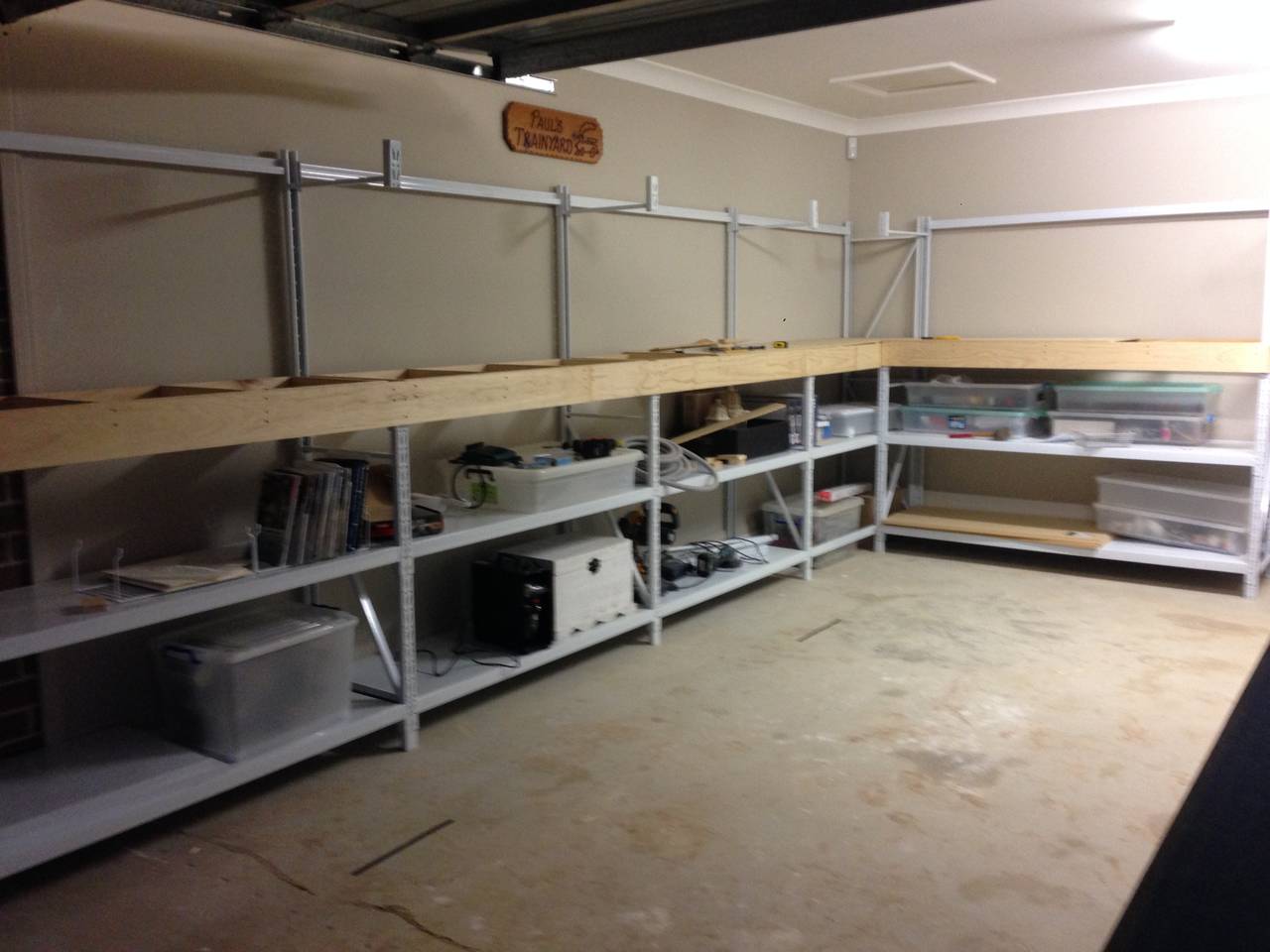

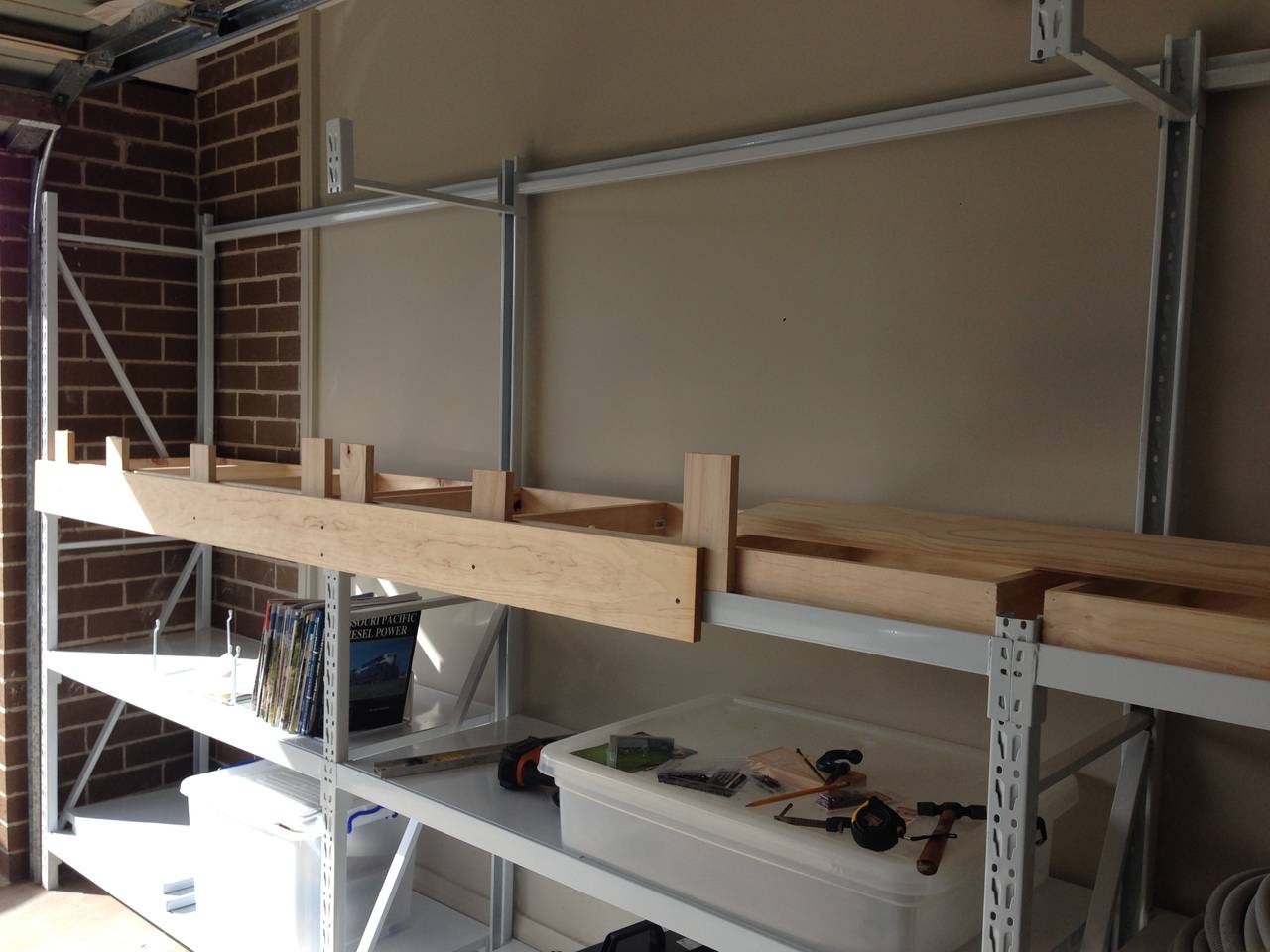

    Today i continued working on the layout and am happy with the progress, tomorrow I should complete the bench top then need to work out how to add the backdrop. My goal is too complete all the back drop before planning on any track laying

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  6. Alan

    Alan Staff Member TrainBoard Supporter

    10,795
    422
    127
    VERY impressive! :)

    Sent from my Nexus 7 using Tapatalk

  7. RGW

    RGW TrainBoard Member

    1,847
    1,785
    50
    Outstanding

  8. StickyMonk

    StickyMonk Staff Member

    1,941
    104
    36
    I am not at all jealous, very impressive.

    Sent from my Xperia Z using Tapatalk 2

  9. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117
    thanks everyone the 9mm mdf top has been built now wondering whether to do the backdrop and valance before i start drawing up the design, my goal was to have the backdrop installed and painted before i brought all the track out.

    Comments????

  10. Alan

    Alan Staff Member TrainBoard Supporter

    10,795
    422
    127
    Depends on what sort of backdrop. If it is just sky, etc. I would do it first, but if it needs to match various areas of the layout, would do it later - or maybe a combination of above.

    Sent from my Nexus 7 using Tapatalk

  11. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117
    Yes just blue sky

  12. N-Jineer

    N-Jineer TrainBoard Member

    535
    35
    22
    IF I was the jealous type, I would be screaming by now....

    AAAARRRGGGHHHH!!!! :teeth:


    Looking good Paul

  13. J911

    J911 TrainBoard Member

    497
    31
    10
    Looking fantastic!

    Sent from my SPH-L710 using Tapatalk

  14. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117

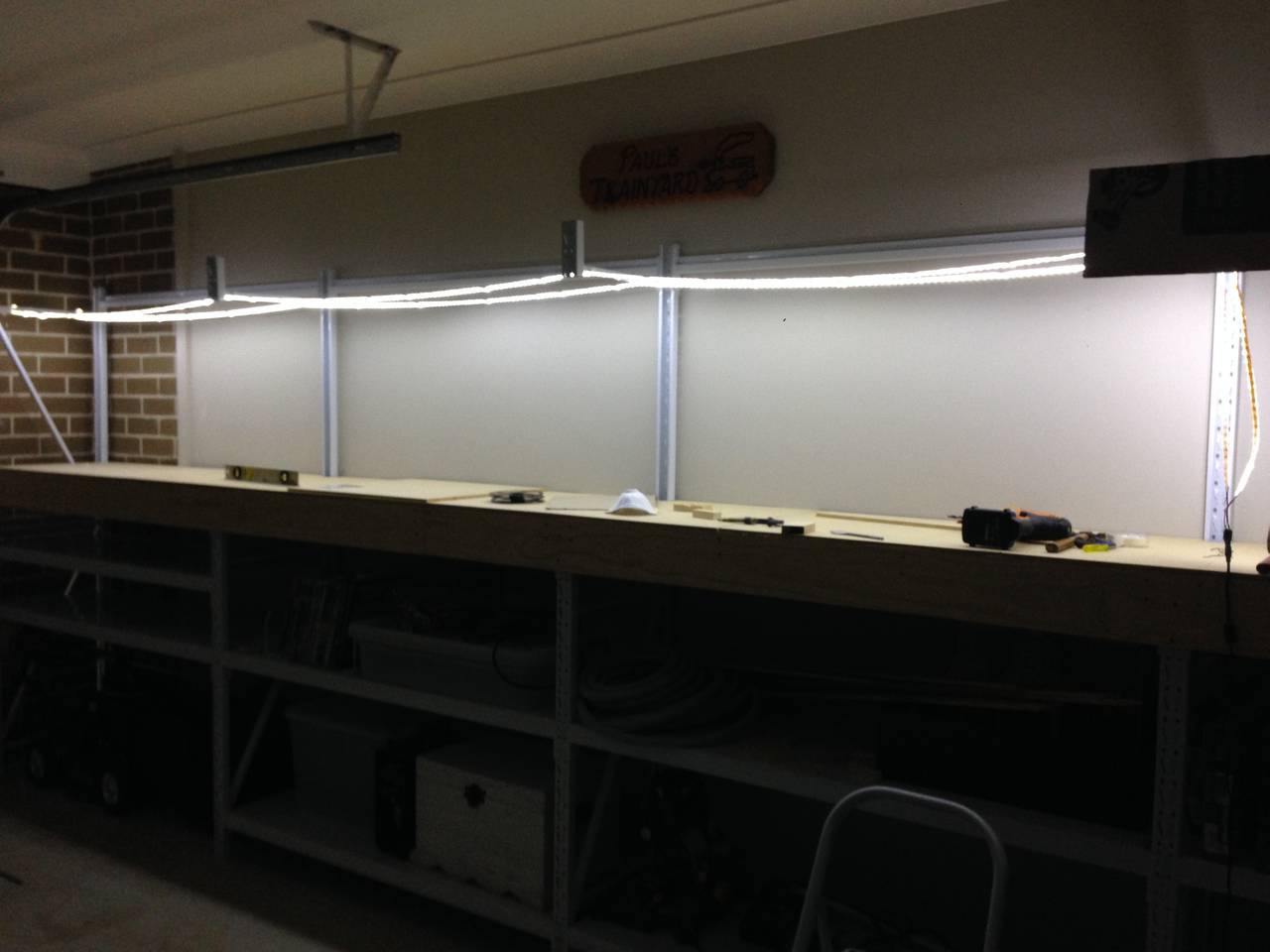

    Did a few more hours work today and am pleased with the progress. first I tested using strip LED lighting which looks great and will be much better once the valance is installed

    [​IMG]

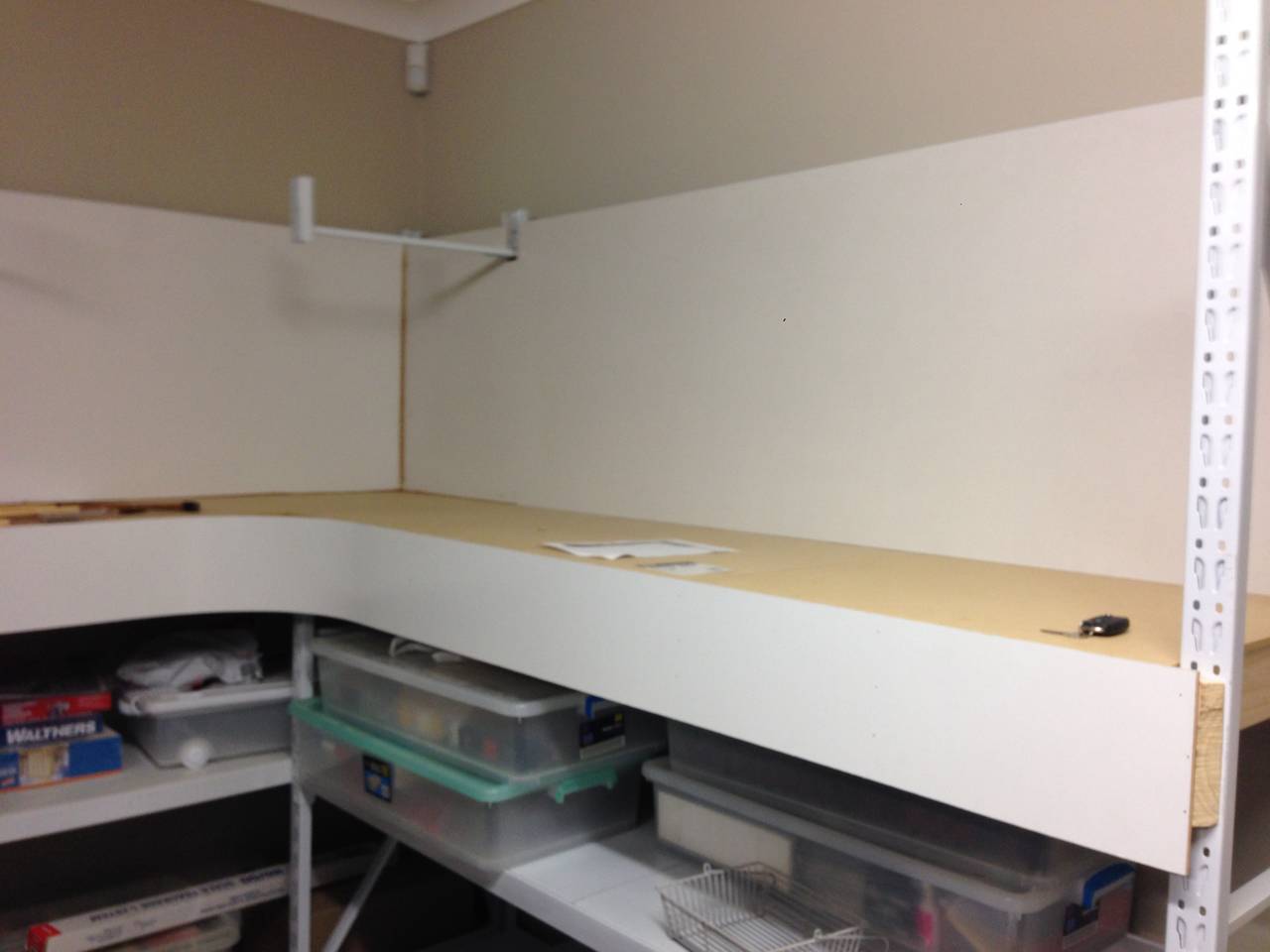

    I then installed most of the backdrop and installed a section of fascia to see how it all looked

    [​IMG]

    [​IMG]

    Next is to complete the fascia then install the valance then paint it all

  15. Alan

    Alan Staff Member TrainBoard Supporter

    10,795
    422
    127
    Wow! That lighting will be fantastic! Also love the fascia. Great job :)

    Sent from my Nexus 7 using Tapatalk

  16. Flash Blackman

    Flash Blackman Staff Member TrainBoard Supporter

    13,326
    361
    149
    When you install the backdrop, do you just notch it out to fit where the braces are at the top? Thanks.

    This is a wonderful way to build a layout. It has all the correct characteristics.

  17. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117
    Yes Flash and I used liquid nails to secure it to the rack.

  18. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117

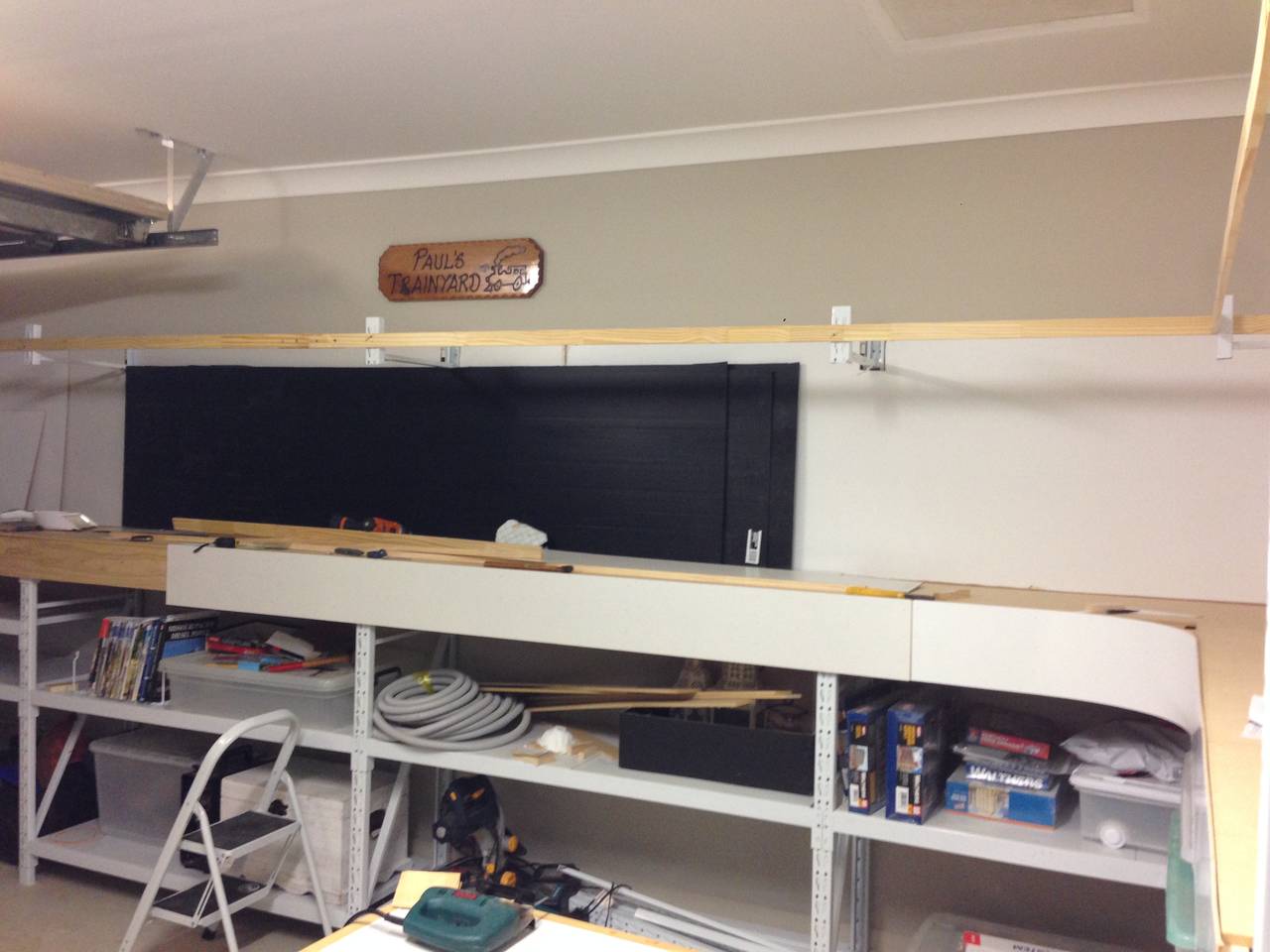

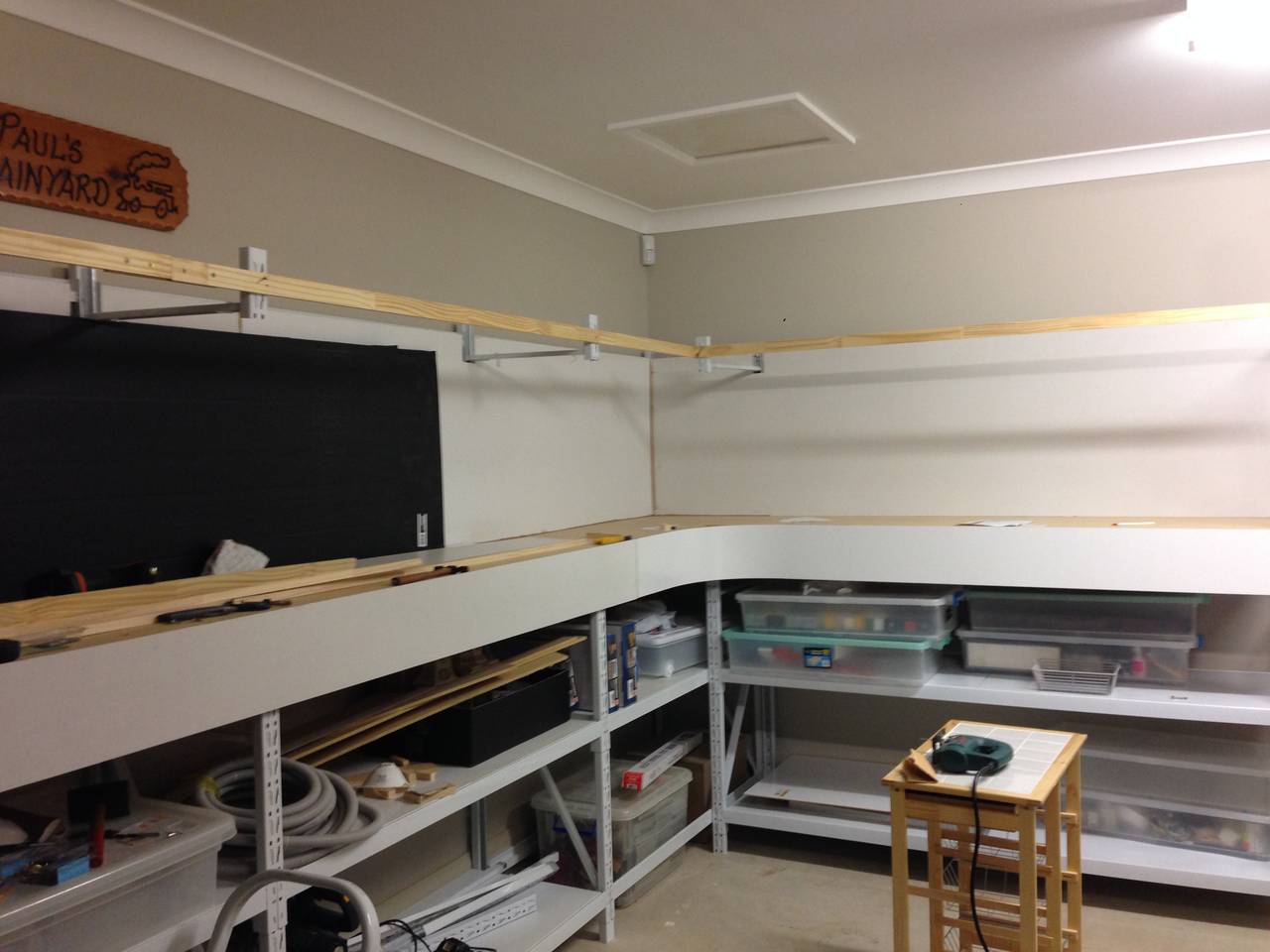

    A little more work this evening, I set up the frame for the valance, took a little to figure out but in the end happy with the result, pleased to report very little sag.

    [​IMG]

    [​IMG]

  19. RGW

    RGW TrainBoard Member

    1,847
    1,785
    50
    Paul, work railroad is really going to be amazing if your benchwork is any indication. M

  20. Colonel

    Colonel Staff Member TrainBoard Supporter

    8,701
    988
    117
    Thanks for the compliment, my goal is to complete all the bench work including painting before I even think about laying track. I am still planning the phases but at this stage i will lay and wire the track and operate to ensure no track issues, The layout will get base scenery and structures then over time each structure and area will be super detailed
